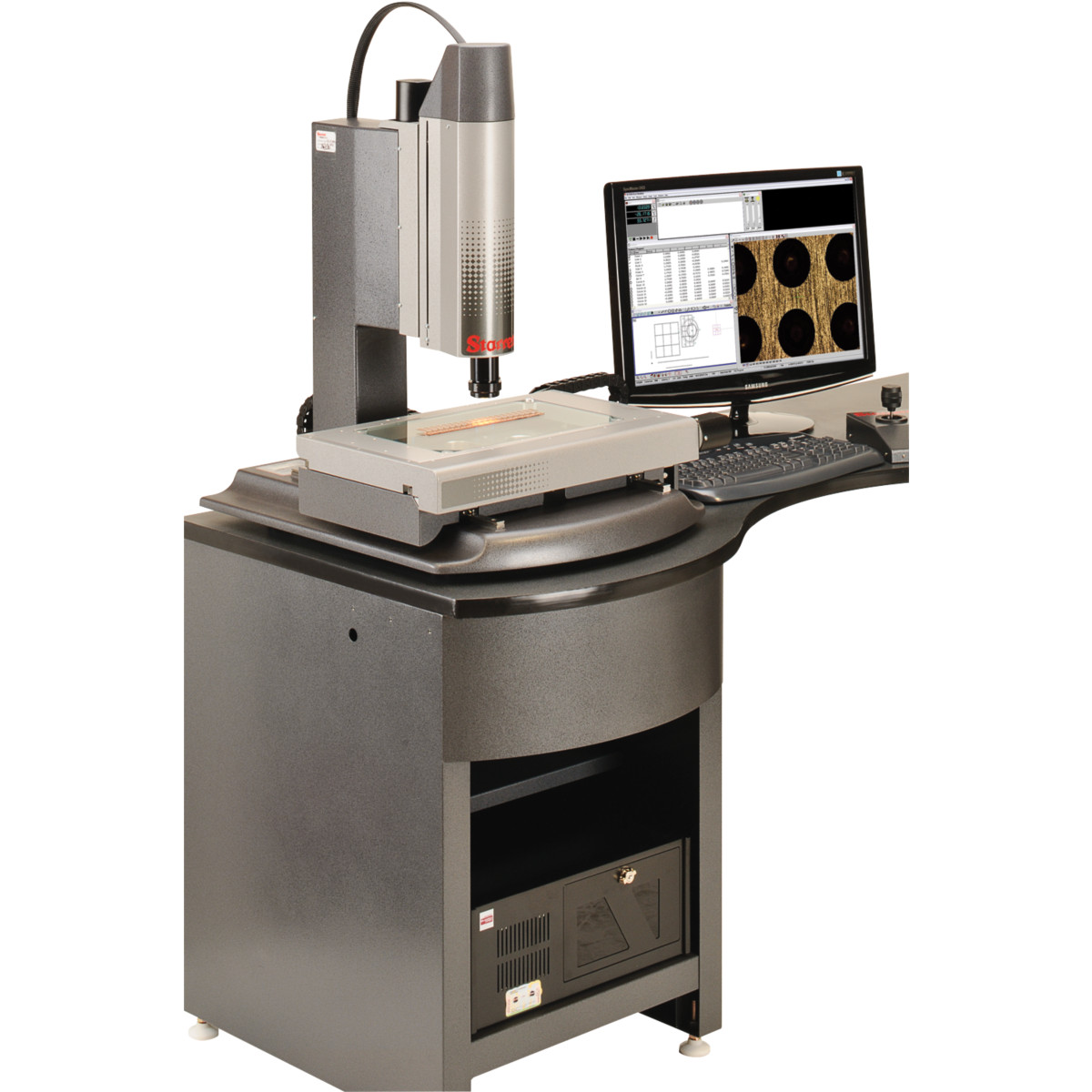

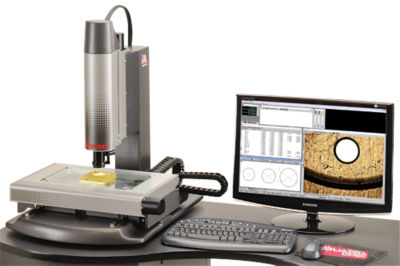

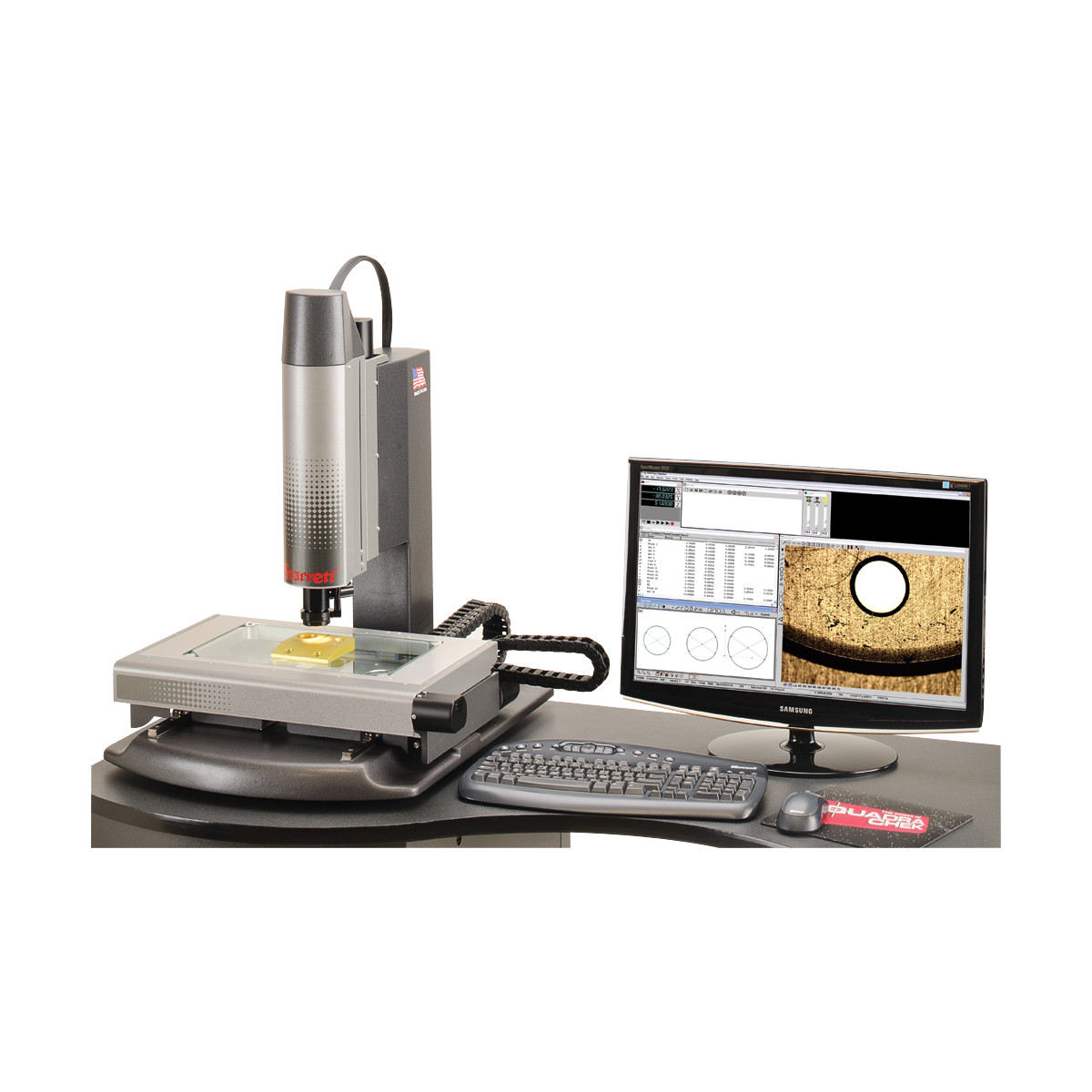

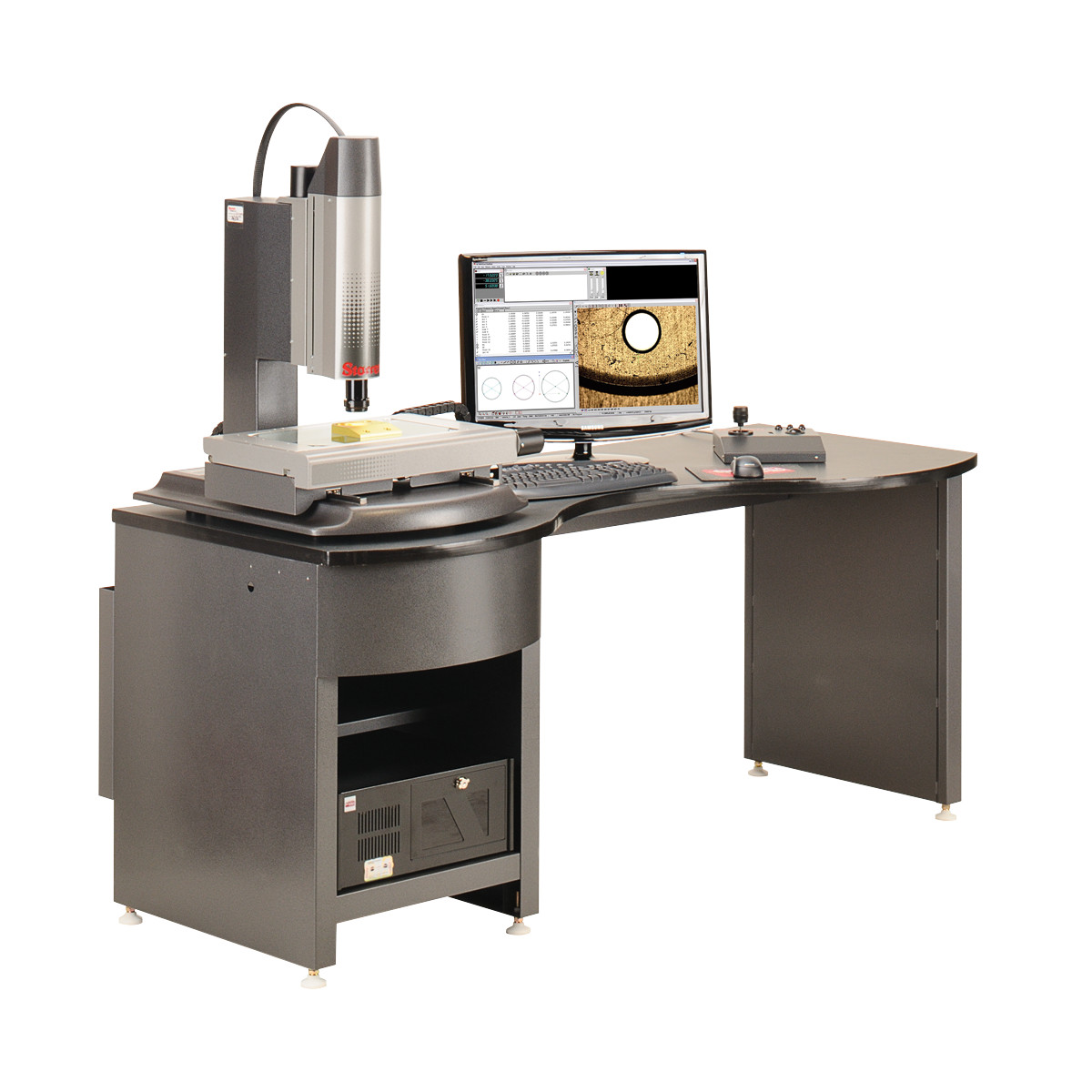

Galileo AV300 Vision Systems
Combines high-resolution images with the latest software and a precision mechanical platform to deliver 12" x 6" x 5.5" (300mm x 150mm x 140mm) of superb accuracy for a wide range of measuring applications. Galileo systems are easy to use, versatile, and accurate. With a variety of options, you can configure a Galileo system that’s just right for your application and budget.
|
-
System Type Bench-Top
-
X-Y-Z Measuring Range (inch) 12" x 6" x 5.5"*
-
X-Y-Z Measuring Range (mm) 300 x 150 x 140
-
X-Y Accuracy (in µm) E2=1.9+5L/1000
-
Z Accuracy (in µm) E1=2.5+5L/1000
-
System Software Quadra Chek QC300, QC5200
-
Zoom Optics 6.5:1
-
S-Video Color Camera Analog or Digital
-
Digital Video Color Camera with QC5000
-
Surface Ring Illumination LED or Fi-O
-
Transmitted Illumination LED or Fi-O
-
Coaxial Illumination Optional
-
Dark Field Quadrant Illumination (LED only) Optional
-
Auxiliary Lenses (Optional) .5X, 2.0X
-
Rotary Table Compatible Optional
-
Workstation Optional
-
Part Fixturing Optional
-
Video Pixel Calibration Standard Optional
-
Calibration Standards Optional
-
AV150, AV300, AV350 - Bulletin 967
