KineScope with VLink Software

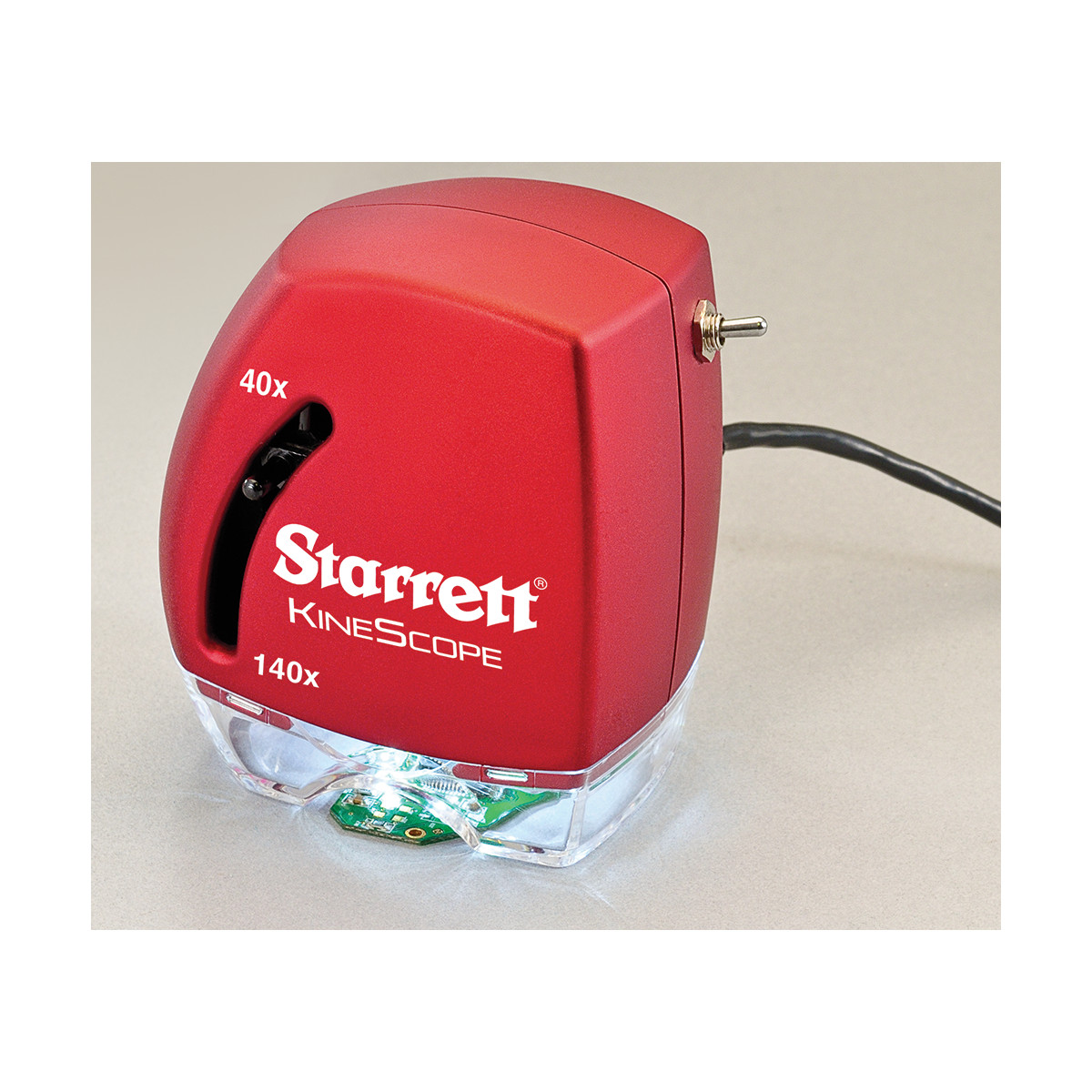

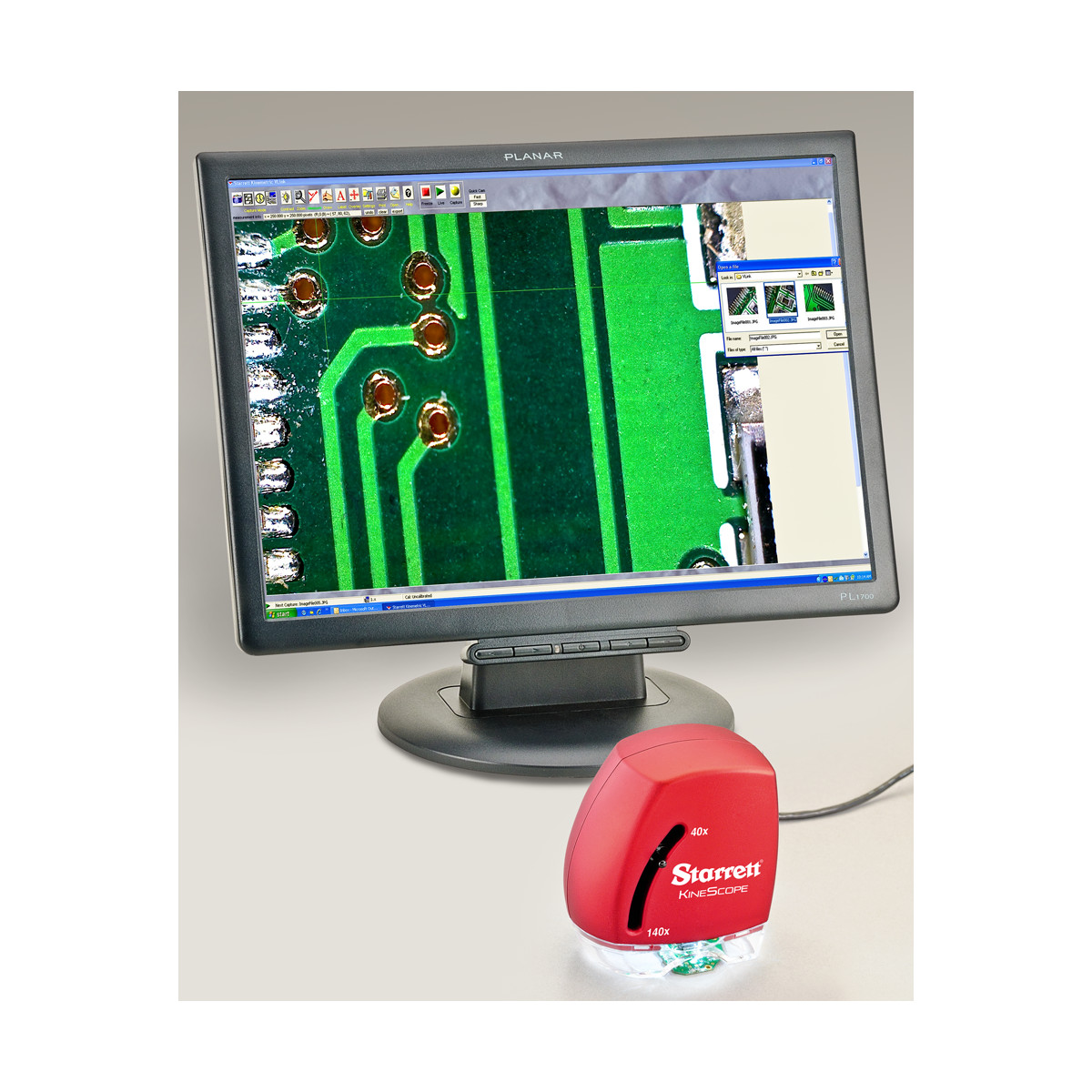

The KineScope microscope combines a digital movie camera, precision optics and LED lighting in the palm of your hand. 40 - 140X magnification lets you zoom in on the fine details of large or small parts. Connect the KineScope directly to your computer’s USB port and place it over an object to view the image on your computer screen. Using the included Video Toolbox imaging and measuring software, capture images and video, easily add labels, make measurements and draw on the live image. Then archieve, share or print your finished image. The KineScope is great for medical manufacturing, machine shop, electronic parts or virtually anything you need to inspect or measure.
|
-
Camera with integrated illumination and USB connector
-

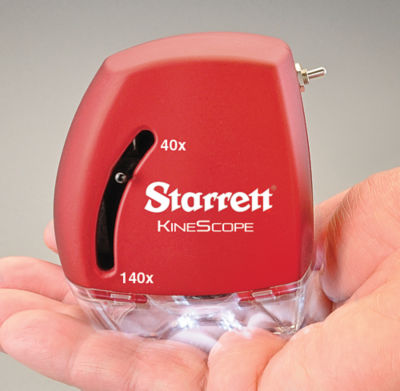

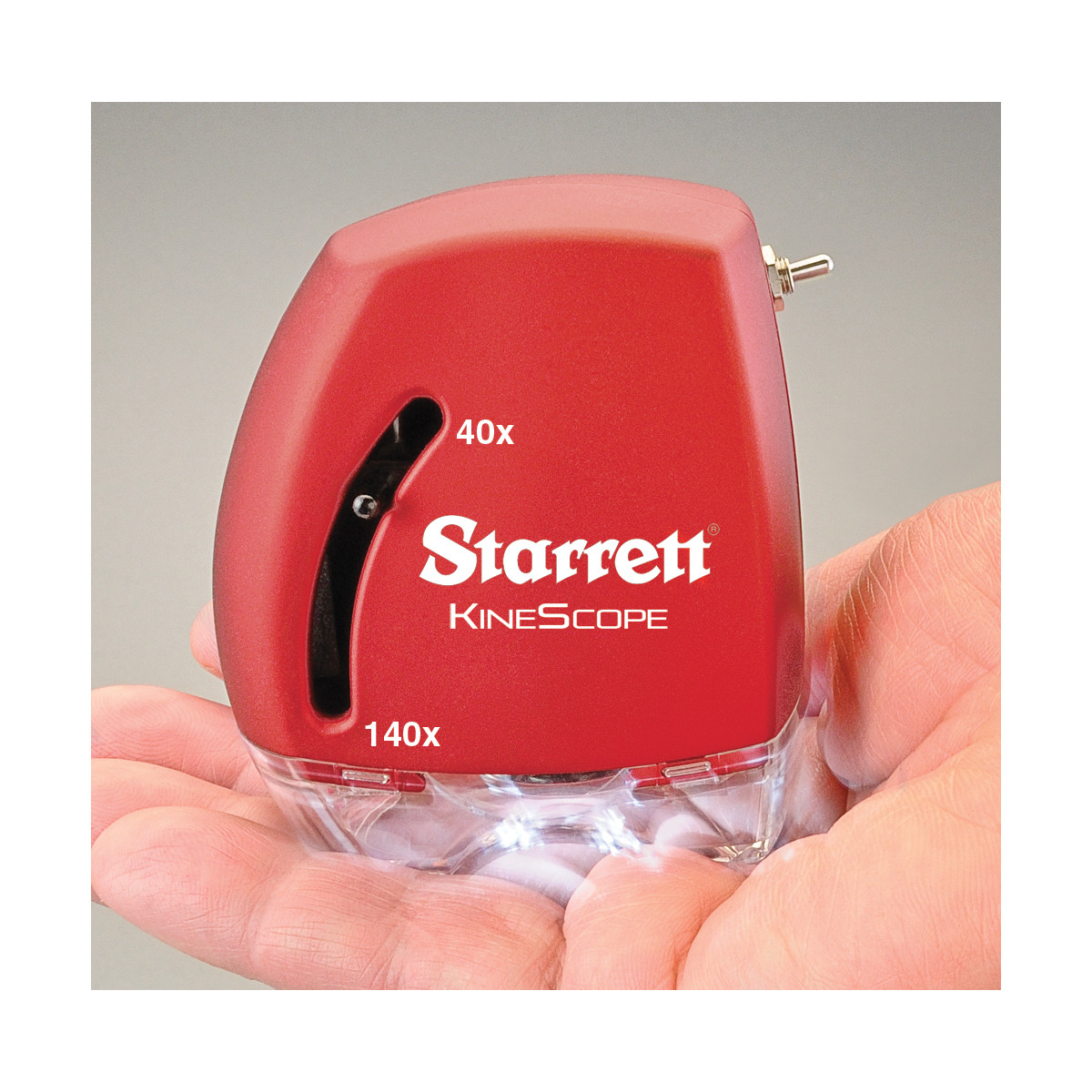

Portable inspection system that can fit in the palm of your hand
-
Stabilizer stands - four different height stands for various part size applications
-
Image Sensor 1/4” CMOS
-
Pixels 640 x 480
-
Power USB port
-
Light Source Super-bright LEDs & Infra Red
-
Field of View @40X 7.5 x 10 mm
-
Field of View @140X 1.8 x 2.5 mm
-
Resolution 4 microns Positive split gear anti-backlash control
-
System Requirements Pentium III 500MHz or greater, Windows 2000/XP/VISTA, Direct X 8.1 or greater, Internet Explorer 5.0 or greater, USB port
-
Vlink Software Standard
-
KineScope Handheld Video Measurement
-
KineScope with Vlink Software - Bulletin 957
