2-Face and 4-Face Angle Plates

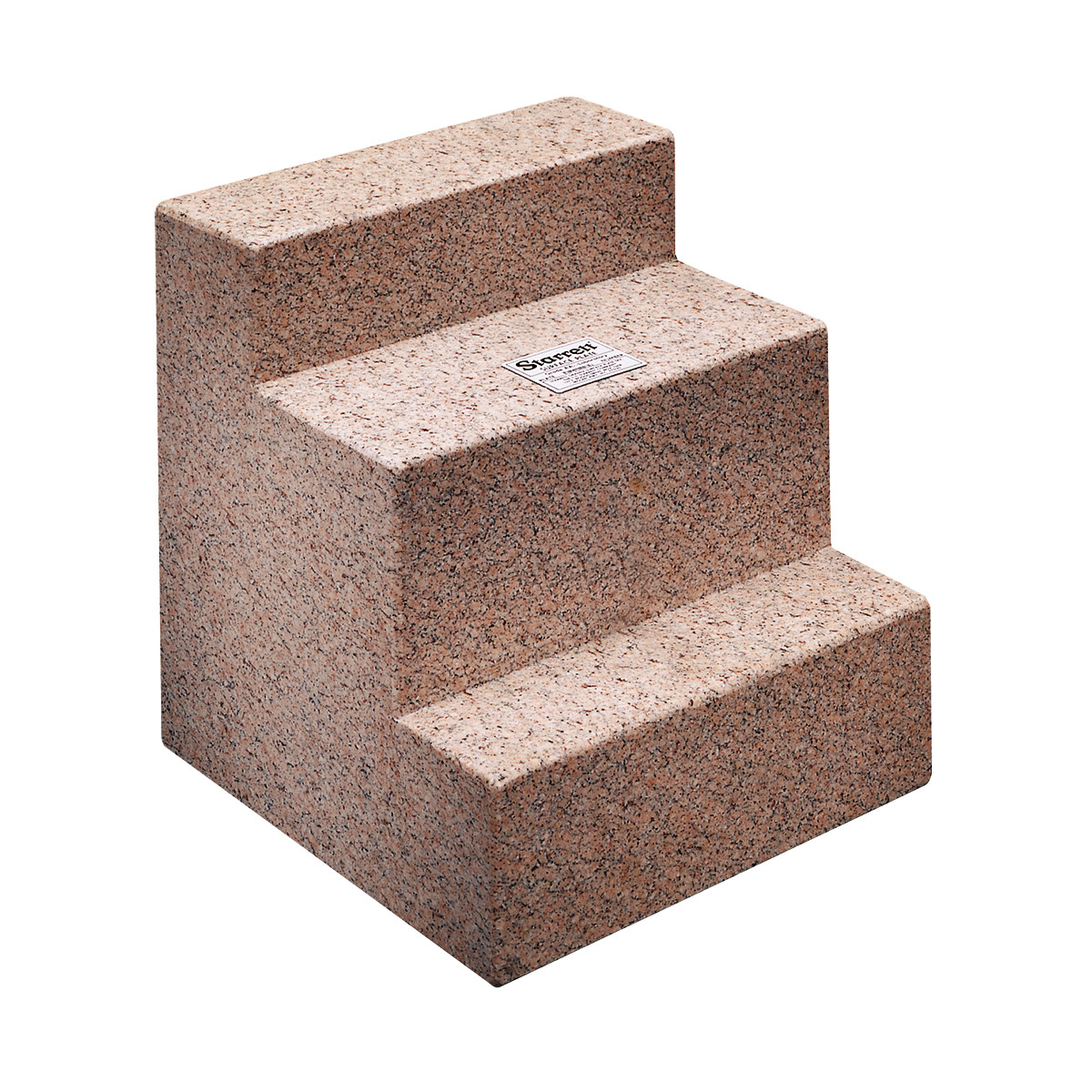

Angle Plates provide a convenient and practicals means of clamping and holding work in a vertical position. The 2-face angle plate has the bottom and the adjacent square face finished flat and square to one another. Also available is a 4-face version with the two adjacent sides finished flat and square to the other two faces, as well as being parallel to one another.

Products
Features
Specifications



Contact Starrett

Products

    Size
    Length x Width x Thickness

    Grade AA Laboratory
    .000025"/6" TIR
    (0.0006/150mm)

    Grade A Inspection
    .000050"/6" TIR (0.0012/150mm)

    Weight

    2-Face

    4-Face

    2-Face

    4-Face

    Inch

    mm

    EDP

    EDP

    EDP

    EDP

    Lb

    kg

    4 x 4 x 4

    100 x 100 x 100

    81564

    81565

    81562

    81563

    8

    4

    6 x 6 x 6

    150 x 150 x 150

    81569

    81568

    81566

    81567

    24

    11

    6 x 9 x 12

    150 x 225 x 300

    81572

    81573

    81570

    81571

    72

    33

    9 x 9 x 9

    225 x 225 x 225

    81576

    81577

    81574

    81575

    80

    36

    12 x 12 x 12

    300 x 300 x 300

    81579

    81578

    81581

    81580

    190

    86

Features

  • Convenient and practical means of clamping and holding work in a vertical position.
  • Available with 2 Finished Faces or 4 Finished Faces.
  • Two-Face Angle Plates have the bottom surface and the adjacent back surface finished flat and perpendicular to one another.
  • Four-Face Angle Plates have the bottom surface and back surface finished, in addition to the two sides adjacent to the steps finished perpendicular to the first to faces and parallel to one another. The steps are not finished.
  • Custom sizes can be quoted upon request.

Specifications

  • Grade AA Tolerance: .000025" per 6"
  • Grade A Tolerance: .000050" per 6"

  • Tru-Stone 1,816.24 kb
