5-Face V-Blocks

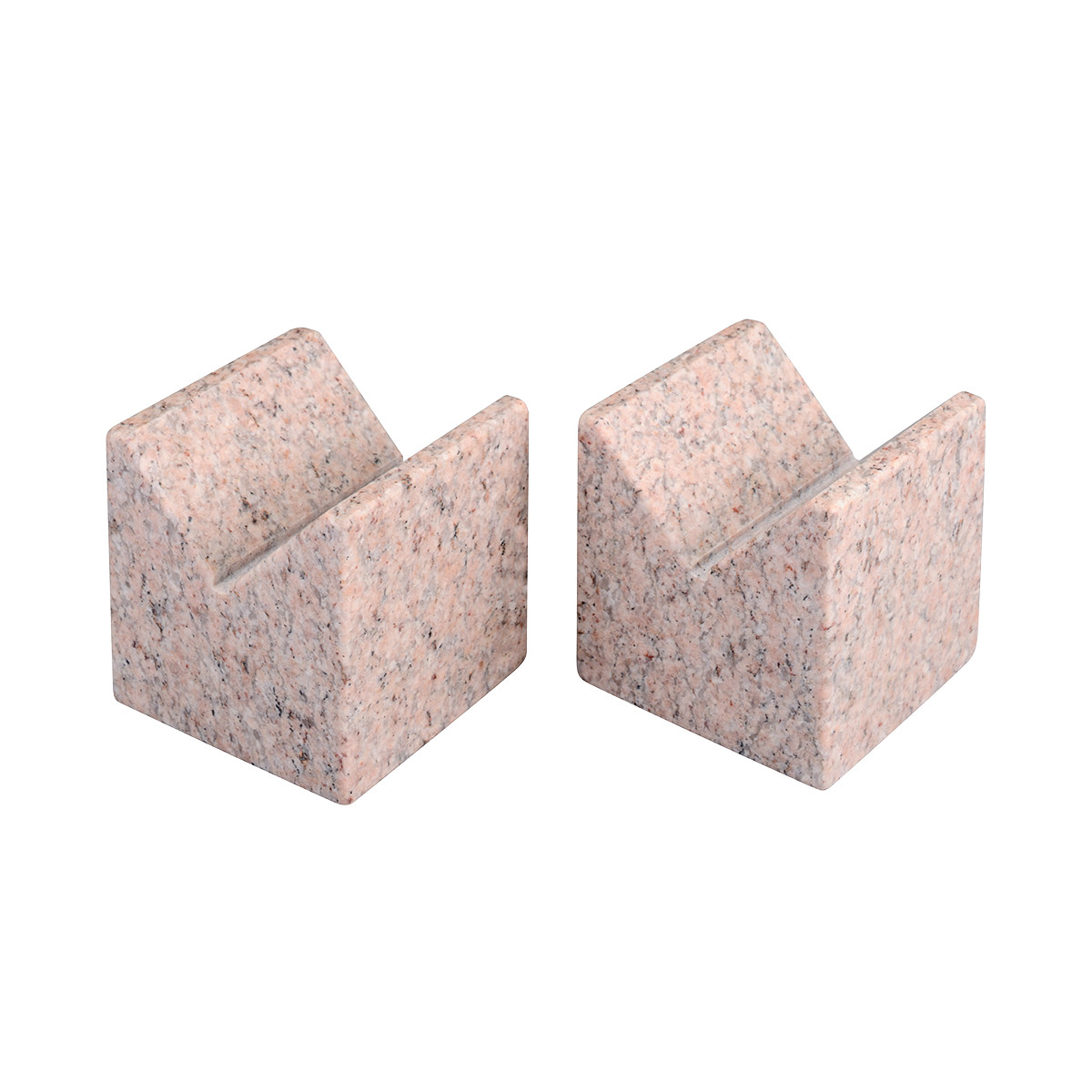

Granite Five-Face V-Blocks, sold as matched pairs, hold and support cylindrical pieces during inspection or manufacturing. They have five finished faces. They have a nominal 90-degree “V”, centered with and parallel to the bottom and two sides and square to the ends. They are available in five sizes and are made from our pink granite.

Products
Features
Specifications
Downloads



Contact Starrett

Products

    Length x Width x Thickness

    Weight

    Grade AA Laboratory
    .000050"/6" TIR (0.0012/150mm)

    Grade A Inspection
    .000100"/6" TIR (0.0024/150mm)

    Inch

    mm

    Lb

    kg

    EDP

    EDP

    3 x 3 x 3

    75 x 75 x 75

    6

    3

    81533

    81530

    4 x 4 x 4

    100 x 100 x 100

    15

    7

    81534

    81531

    6 x 6 x 6

    150 x 150 x 150

    48

    22

    81535

    81532

    9 x 9 x 9

    225 x 225 x 225

    160

    73

    81537

    81536

    12 x 12 x 12

    300 x 300 x 300

    380

    172

    81539

    81538

Features

  • Ideal for supporting or holding cylindrical pieces during manufacturing or inspection.
  • Provided in matched pairs.
  • V-Blocks have a 90-deg "V" centered with an parallel to the bottom and two sides and square to the ends (5 finished faces).
  • Custom sizes can be quoted upon request.
  • Storage Cases are available at an additional charge.

Specifications

  • Grade AA Tolerance: +/- .000050"
  • Grade A Tolerance: +/- .000100"

Downloads

  • Tru-Stone 1,816.24 kb
