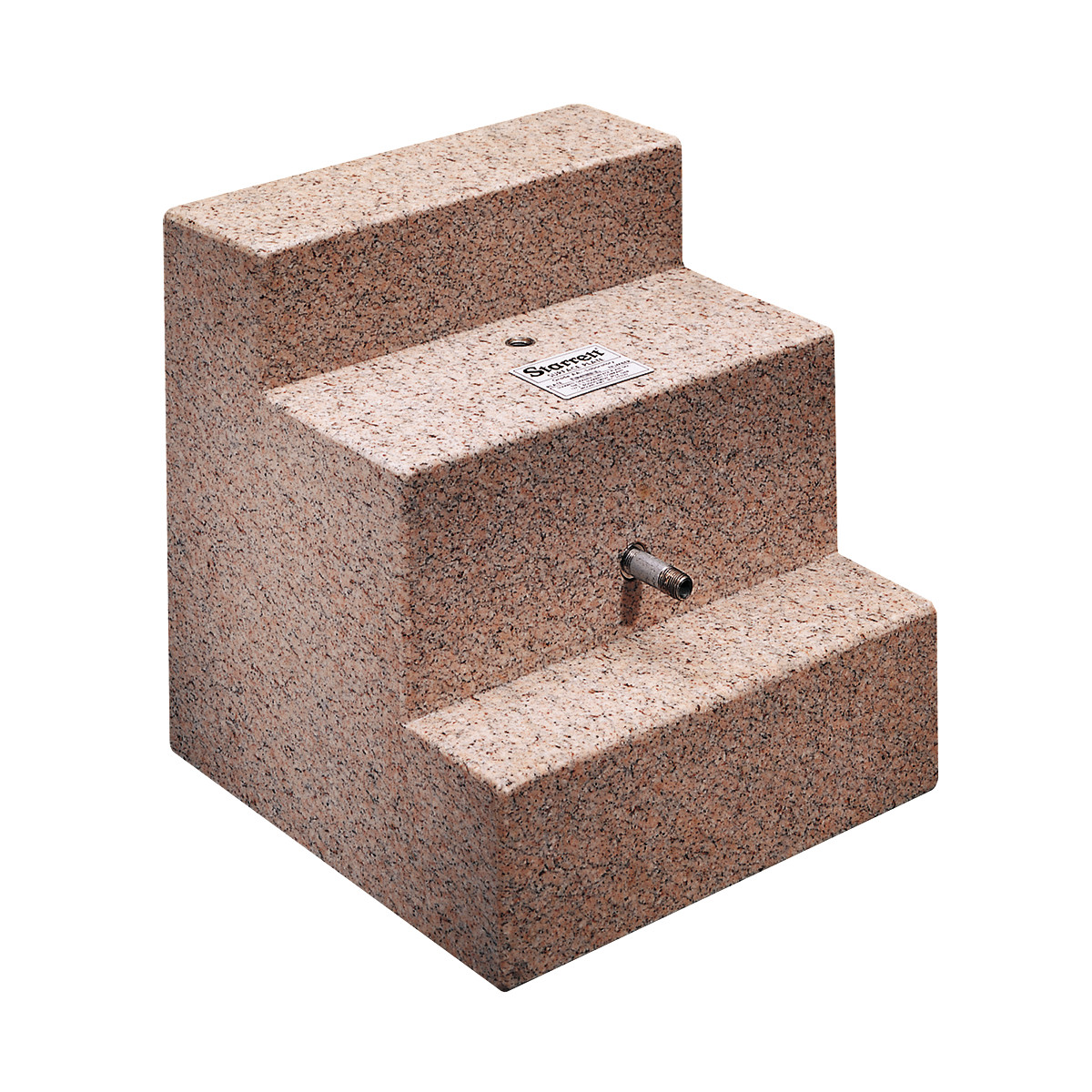

4-Face Inserted Angle Plates

Four-Face Inserted Angle Plates hav two adjacent sides finished flat and square to the other two faces, as well as being parallel to each other with metal discs inserted into one side. They also have a main gaging face for magnetic chucking and threaded inserts for clamping.

Products
Features
Specifications
Downloads



Contact Starrett

Products

    Size
    Length x Width x Thickness

    Grade AA Laboratory
    .000025"/6" TIR (0.0006/150mm)

    Grade A Inspection
    .000050"/6" TIR (0.0012/150mm)

    Weight

    Inch

    mm

    EDP

    EDP

    Lb

    kg

    4 x 4 x 4

    100 x 100 x 100

    81860

    81861

    8

    4

    6 x 6 x 6

    150 x 150 x 150

    81864

    81865

    24

    11

    6 x 9 x 12

    150 x 225 x 300

    81868

    81869

    72

    33

Features

  • Convenient and practical means of clamping and holding work in a vertical position.
  • Available with 4 finished faces.
  • Four-Face Angle Plates have the bottom surface and back surface finished, in addition to the two sides adjacent to the steps finished perpendicular to the first to faces and parallel to one another. The steps are not finished.
  • Metal discs inserted into one side. Also a main gauging face for magnetic chucking purposes. Threaded inserts for clamping purposes.
  • Custom sizes can be quoted upon request.
  • Storage Cases are available at an additional charge.

Specifications

  • Grade AA Tolerance: .000025" per 6"
  • Grade A Tolerance: .000050" per 6"

Downloads

  • Tru-Stone 1,816.24 kb
