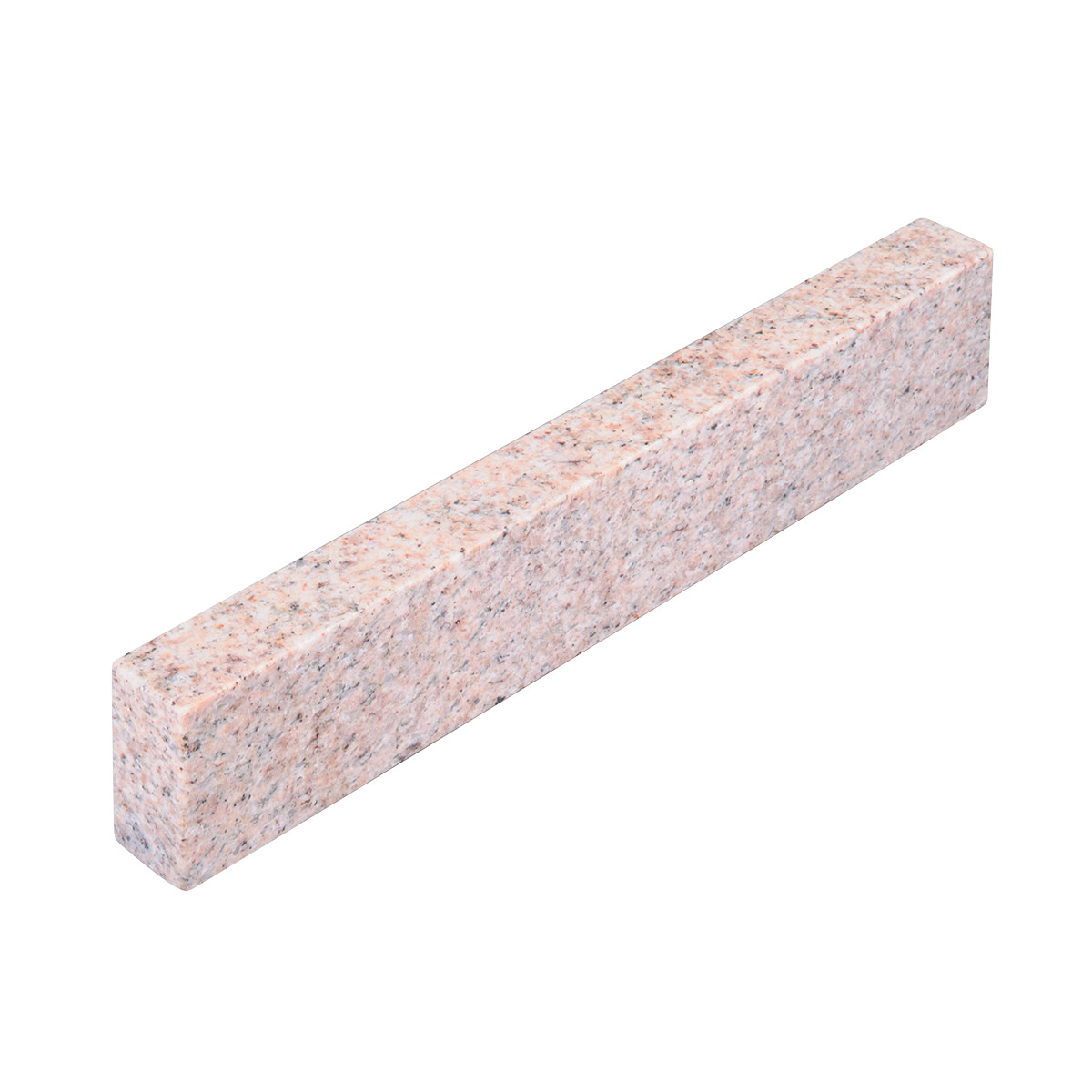

Straight Edges

Granite Straight Edges have a single long, narrow face finished flat. They are available in five sizes and are made from our pink granite.

Products
Features
Specifications



Contact Starrett

Products

    Length x Width x Thickness

    Weight

    Grade AA Laboratory
    .000025"/6" TIR (0.0006/150mm)

    Grade A Inspection
    .000050"/6" TIR (0.0012/150mm)

    Inch

    mm

    Lb

    kg

    EDP

    EDP

    2 x 4 x 24

    50 x 100 x 600

    22

    10

    81608

    81648

    2 x 6 x 36

    50 x 150 x 900

    48

    22

    81610

    81650

    3 x 8 x 48

    75 x 200 x 1200

    85

    39

    81612

    81652

    3 x 10 x 60

    75 x 250 x 1500

    198

    90

    81613

    81653

    3 x 12 x 72

    75 x 300 x 1800

    285

    129

    81614

    81654

Features

  • Our straight edges are produced from Pink granite
  • Straight edges have a single long, narrow face finished flat
  • Lifting holes are provided on sizes 48" or larger
  • Straight edges have a single long, narrow face finished flat/straight.
  • Lifting holes are provided on sizes 48" or larger.
  • Custom sizes can be quoted upon request.
  • Storage and Travel Cases are available at an additional charge.

Specifications

  • Grade AA Tolerance: .000025" per 6"
  • Grade A Tolerance: .000050" per 6"

  • Tru-Stone 1,816.24 kb
