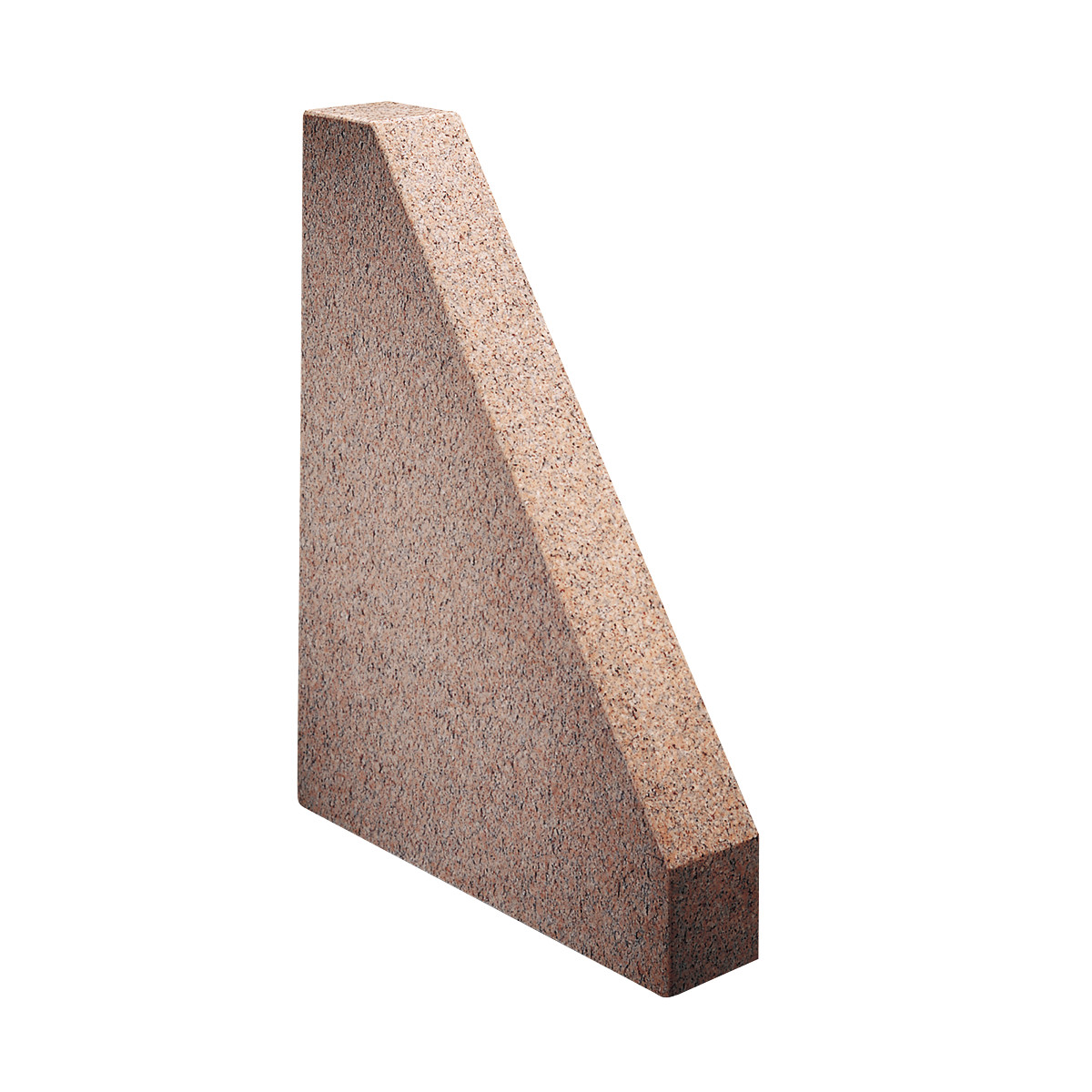

3-Face Tri-Squares

Three-Face Granite Tri-Squares provide an excellent, economical way to check X, Y and Z axis alignment on CNCs and CMMs. They can also be used in the same way as a steel square for direct checking of squareness and straightness.

Products
Features
Specifications



Contact Starrett

Products

    Dimensions

    Weight

    Accuracy Grade – EDP

    Length x Height x Thickness

    AA Laboratory .000025"/6" TIR (0.0006/150mm)

    A Inspection .000050"/6" TIR (0.0012/150mm)

    Inch

    mm

    Lb

    kg

    6 x 9 x 3

    150 x 225 x 75

    18

    8

    81969

    81970

    9 x 12 x 3

    225 x 300 x 75

    23

    10

    81961

    81962

    12 x 18 x 4

    300 x 450 x 100

    60

    27

    81964

    81965

    18 x 24 x 4

    450 x 600 x 100

    120

    54

    81967

    81968

    24 x 36 x 6

    600 x 900 x 150

    570

    259

    81971

    81972

Features

  • Three-Face Granite Tri-Squares provide an excellent, economical way for accurately checking the X-Y-Z axes on CNC machine tools and coordinate measuring machines.
  • Lying in the horizontal position, the X and Y axes can be checked for 90° squareness. With the square in the vertical position, tracing along the vertical edge of the square can check the perpendicularity of the Z axis.
  • Granite tri-squares may also be used in the same manner that steel squares would be used for the direct checking of squareness and straightness.
  • Tri-Squares have 3 finished faces the bottom surface, the tall edge perpendicular to the bottom and one large triangular face, perpendicular to the other 2 faces.
  • Custom sizes can be quoted upon request.
  • Storage and Travel Cases are available at an additional charge.

Specifications

  • Grade AA Tolerance: .000025" per 6"
  • Grade A Tolerance: .000050" per 6"
