Toolmakers’ Flats

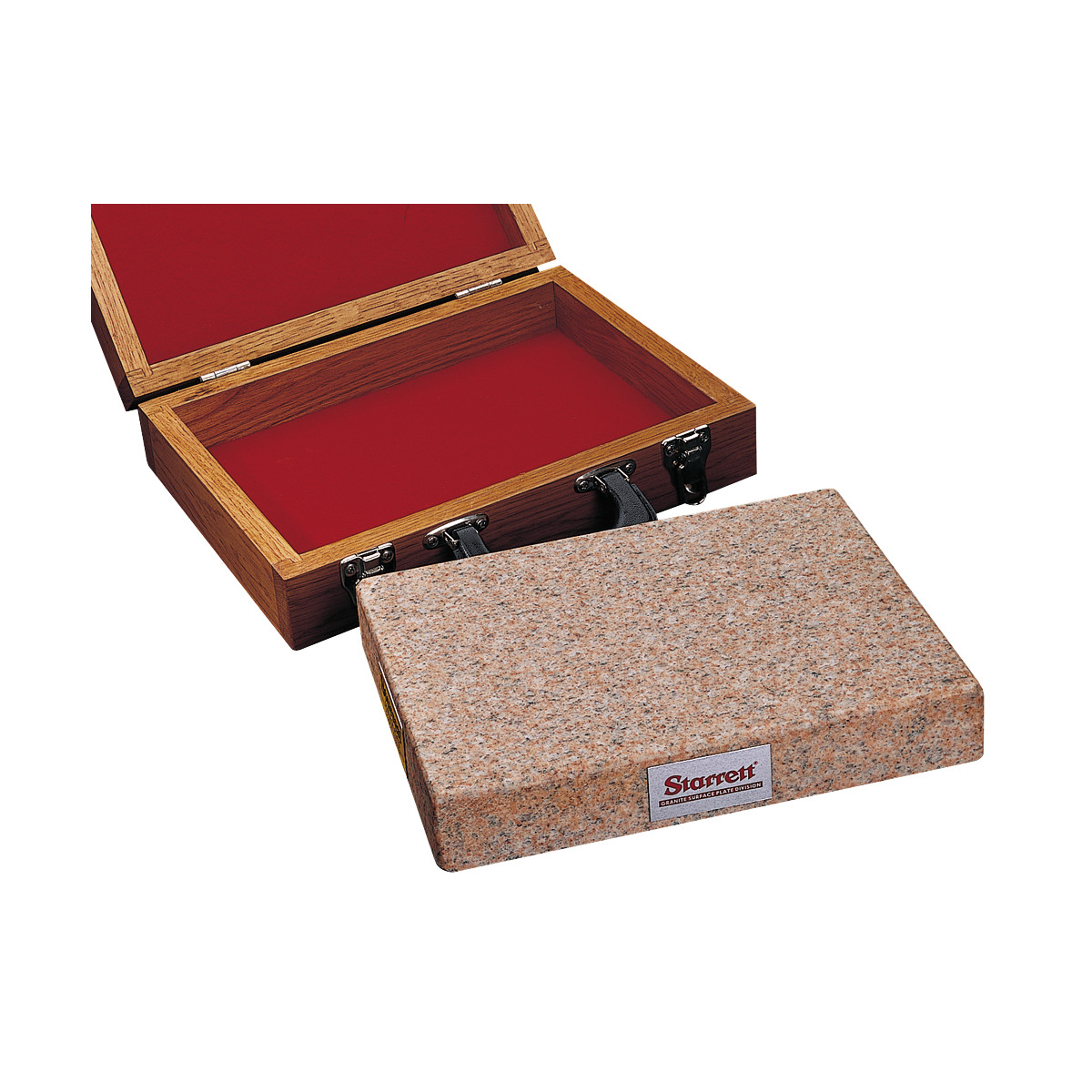

Toolmakers’ Flats are small precision surface plates ideal for shopfloor inspection stations. They are also good for layout work. They are 12" long x 8" wide x 2" thick (300 x 200 x 50mm) and weigh about 20 lb (9kg). They are available in Crystal Pink or Black Granite.

Products
Features
Specifications



Contact Starrett

Products

    Description

    EDP

    Crystal Pink® Granite

    81803

    Black Granite

    81802

    Sturdy Felt Lined Case for Toolmakers’ Flat

    81804

Features

  • These handy flats are small precision surface plates that are ideal for many inspection and checking uses throughout the plant.
  • They are especially well suited for layout work and offer an easy, portable reference for gaging small parts.
  • Offered in Crystal Pink Granite or Black Granite.
  • The shipping weight without case is 20 lb (9kg).

Specifications

  • Dimensions (in): 12" long x 8" wide x 2" thick
  • Dimensions (mm): 300mm long x 200mm wide x 50mm thick
  • Tolerance: .0001"

  • Tru-Stone 1,816.24 kb
