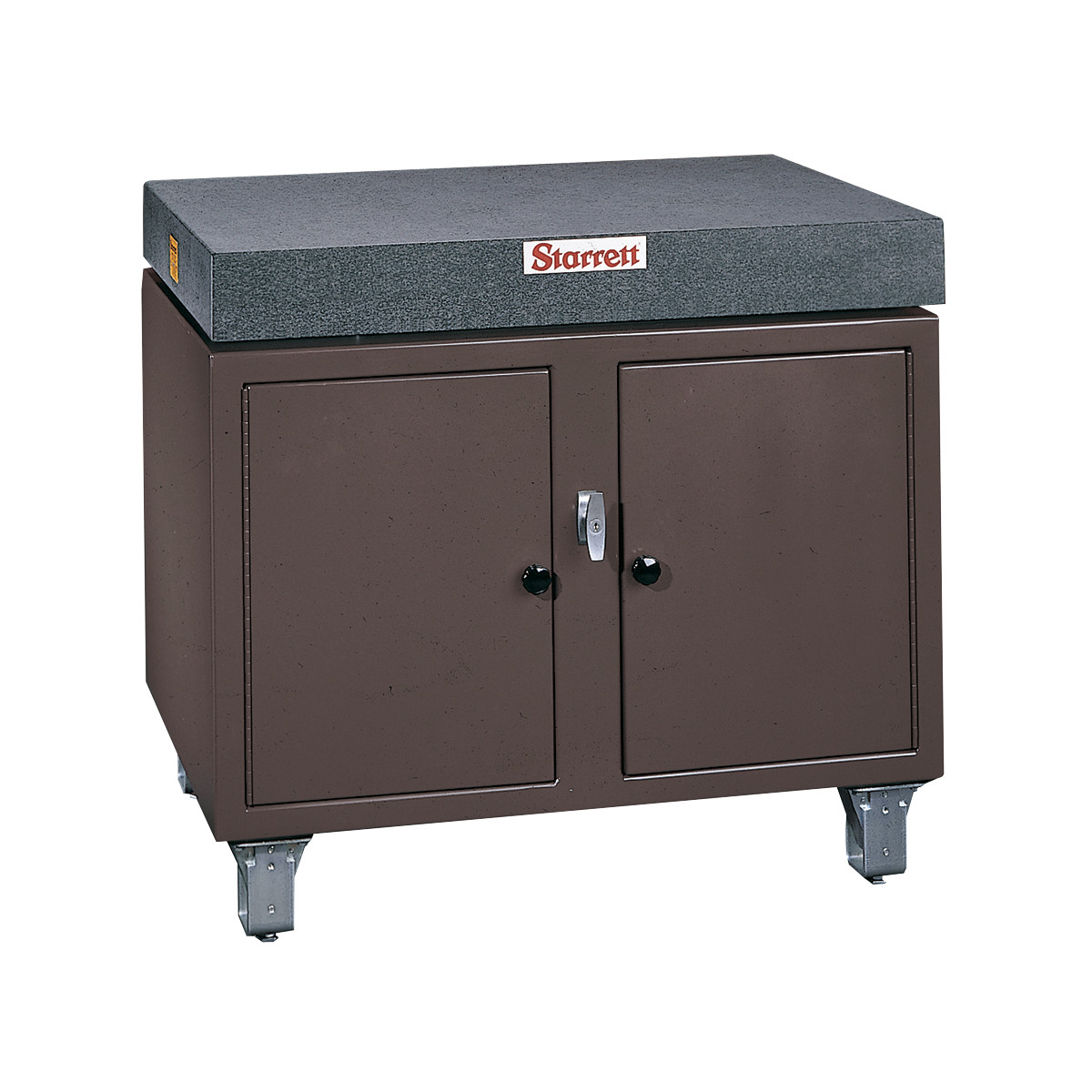

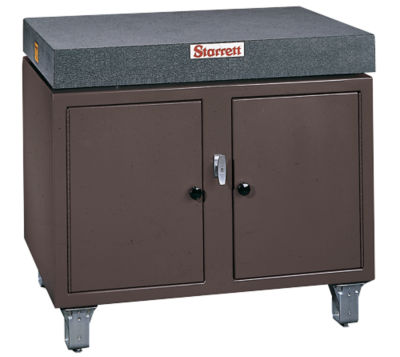

Cabinet Type Surface Plate Stands

Our surface plate stands are heavy duty, durable and provide the proper support for our granite plates. Our cabinet stands have a full top on which to set your granite plate. There is no assembly required with our stands as they are welded. They are made from heavy-gauge welded steel, have locking doors and a durable industrial powder coated finish. They are available with leveling screws or casters.

Products
Features



Contact Starrett

Products

    Surface Plate Size

    Stand Weight

    Stationary Stand

    Rolling Stand

    Inch

    mm

    Lb

    kg

    EDP

    EDP

    24 x 36

    600 x 900

    190

    86

    81504

    81506

    36 x 36

    900 x 900

    245

    111

    81516

    81518

    36 x 48

    900 x 1200

    300

    136

    81513

    81515

    36 x 60

    900 x 1500

    365

    166

    81519

    81521

    36 x 72

    900 x 1800

    440

    200

    81522

    81524

    48 x 72

    1200 x 1800

    660

    299

    81525

    81527

Features

  • Cabinet stands provide a strong, rigid support for standard plates listed, plus a handy place to store frequently used inspection tools and accessories.
  • The standard work height is 34 - 36" (850 - 900mm) from the floor to top of the surface plate.
  • All stands made from heavy-gauge welded steel, have locking doors on the front. The 48" (1200mm) wide stands are equipped with doors front and back unless otherwise specified. Stands are supplied with leveling screws or casters as listed. Order by surface plate size and thickness.

  • Tru-Stone 1,816.24 kb
