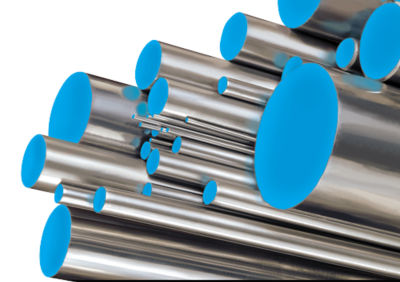

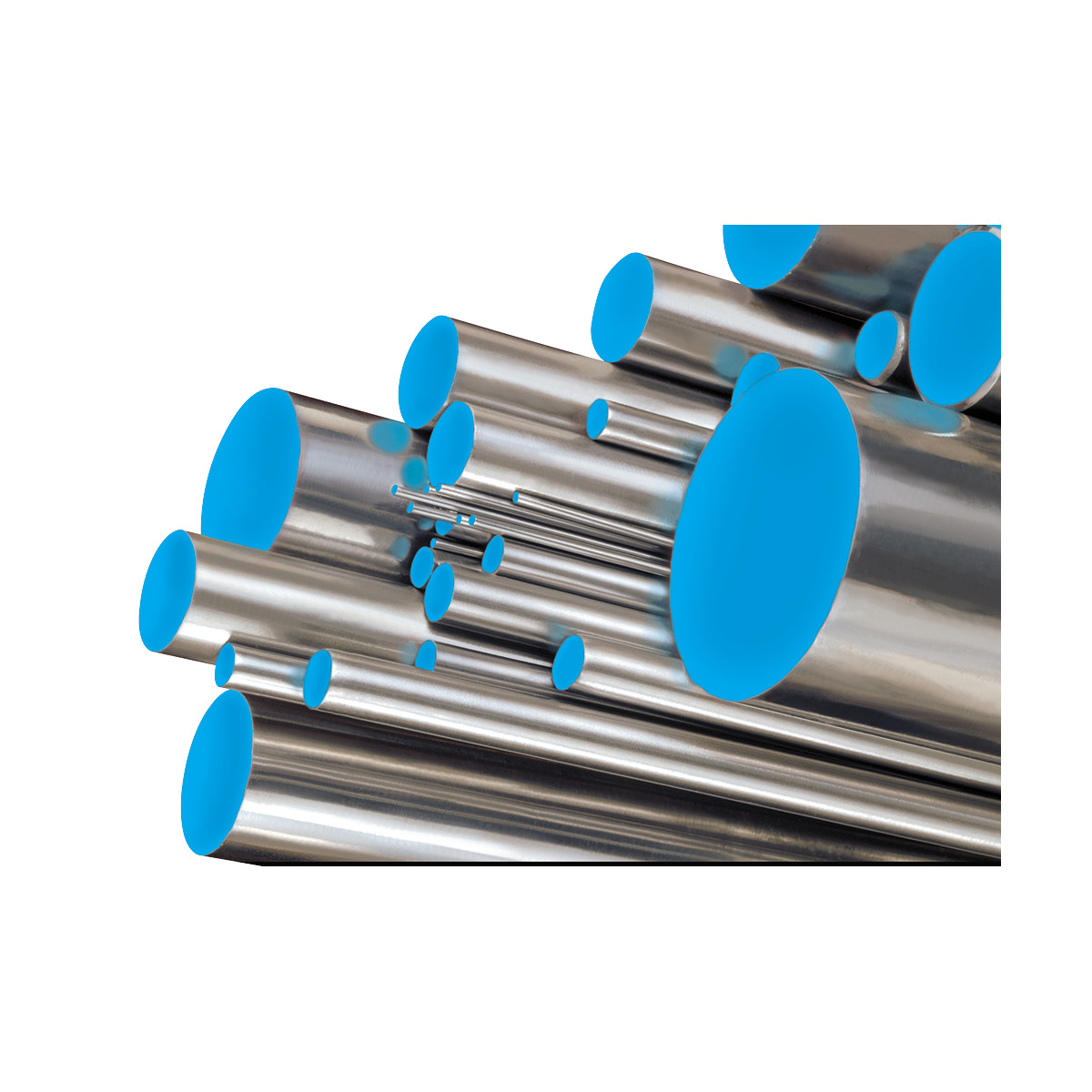

A2 482 Drill Rod

A2 482 Precision (AISI/SAE A2) is a more highly alloyed tool steel that provides excellent wear resistance, toughness and good machinability. Ground and polished drill rod diameter tolerances: <.124" round, ± 0003", .125" to 1 .499", ± 0005", 1.50" to 2", ± 0075".

Products
Downloads



Contact Starrett

Products

    Fractional Sizes

    Diameter

    Decimal

    36" Length

    1/16

    0.0625

    68662

    5/64

    0.0781

    68663

    3/32

    0.0938

    68664

    7/64

    0.1094

    68665

    1/8

    0.1250

    68583

    9/64

    0.1406

    68666

    5/32

    0.1563

    68631

    11/64

    0.1719

    68667

    3/16

    0.1875

    68584

    13/64

    0.2031

    68668

    7/32

    0.2188

    68632

    15/64

    0.2344

    68669

    1/4

    0.2500

    68585

    17/64

    0.2656

    68670

    9/32

    0.2813

    68633

    19/64

    0.2969

    68671

    5/16

    0.3125

    68586

    21/64

    0.3281

    68672

    11/32

    0.3438

    68634

    23/64

    0.3594

    68673

    3/8

    0.3750

    68587

    25/64

    0.3906

    68674

    13/32

    0.4063

    68675

    27/64

    0.4219

    68676

    7/16

    0.4375

    68588

    29/64

    0.4531

    68677

    15/32

    0.4688

    68678

    31/64

    0.4844

    68679

    1/2

    0.5000

    68589

    17/32

    0.5313

    68680

    9/16

    0.5625

    68590

    19/32

    0.5938

    68681

    5/8

    0.6250

    68591

    21/32

    0.6563

    68682

    11/16

    0.6875

    68592

    23/32

    0.7188

    68683

    3/4

    0.7500

    68593

    13/16

    0.8125

    68594

    7/8

    0.8750

    68595

    15/16

    0.9375

    68684

    1

    1.0000

    68596

    11/16

    1.0625

    68685

    1-1/8

    1.1250

    68597

    1-1/4

    1.2500

    68598

    13/8

    1.3750

    68686

    1-1/2

    1.5000

    68599

    13/4

    1.7500

    68687

    2

    2.0000

    68688

Downloads

  • Drill Rod & Flat Stock 581.03 kb
