Major Product Characteristics

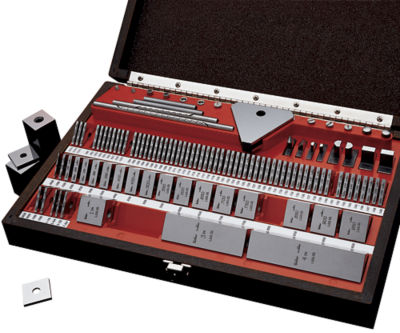

Precision gage blocks are the primary standards vital to dimensional quality control in the manufacture of parts. The four major characteristics that are necessary for a precision gage block are accuracy, surface finish, wear resistance and dimensional stability. Other factors are corrosion resistance, hardness, thermal conductivity and coefficient of expansion.

The base material used for gage blocks is crucial in meeting the above criteria. While many materials have been tried, the major types available today are:
  • Traditional high-grade steel gage blocks, which are generally used in shop floor environments
  • Tungsten Carbide gage blocks, which have the advantage of being harder and longer wearing than steel. (Not available from Webber.)
  • Ceramic gage blocks have an advantage over regular steel. They will outwear regular steel and they will not corrode
  • Chromium Carbide gage blocks are considered the top of the line – the finest available. They outwear regular steel and ceramic. In addition, they will not corrode and are very stable and accurate, and have exceptional “wringing” qualities

croblox® Chromium Carbide: the superior gage block material. The reason that our Webber Gage Division emphasizes gage blocks made from Chromium Carbide is because they are the most stable measuring devices ever developed.

No one in the world except Starrett/Webber has produced the accuracy and stability of our croblox® Grand Masters. They were produced in 1955 of Chromium Carbide material to an accuracy within one millionth of an inch (.0000254mm) and have been checked periodically by the U.S. National Bureau of Standards and the U.S. National Institute of Standards and Technology (NIST) and have remained stable over this period.

Other Characteristics

Accuracy
All Starrett/Webber gage blocks meet or exceed all known specifications. The flatness, parallelism and surface finish necessary to achieve the required accuracies are the same as or better than government requirements.

Stability
Starrett/Webber gage blocks do not change in size except through normal wear. Gage block stability is a characteristic that our Webber Gage Division has mastered with over eighty years of experience. Our gage blocks have withstood the test of time.

Hardness
Steel blocks have a Rockwell “C” hardness of approximately 64-65. Chromium Carbide blocks have a Rockwell “C” hardness of 71-73, with an unusually fine, hard grain structure which gives them exceptional resistance to wear and abrasion.

Thermal Conductivity and Coefficient of Expansion
These are not important considerations when measurements are taken in temperature-controlled environments. This is primarily done when measuring to microinches or microns.

On the shop floor, where precision measurements are rarely finer than .0002" or 0.005mm, the coefficient of expansion of steel, chromium carbide and ceramic is so close as to be negligible.

Thermal conductivity is important on the shop floor. However, because it takes time for a gage block to move to the same temperature as the work piece, we recommend setting the gage block on a heat sink such as a large mass of metal that is at the shop environment temperature.

NVLAP Accreditation


National Institute of Standards and Technology
National Voluntary Laboratory Accreditation Program
Calibration Laboratories NVLAP Lab Code 200038-0
Webber Gage Division /
L.S. Starrett Co.

24500 Detroit Rd
Cleveland, OH 44145
Phone: (440) 835-0001
Fax: (440) 892-9555
Email Us
Dimensional NVLAP Code: 20/D03 Gage Blocks

NVLAP Accreditation does not constitute an endorsement of any product by NVLAP or any agency of the US government.
