363L Digital Micrometer Head 56297

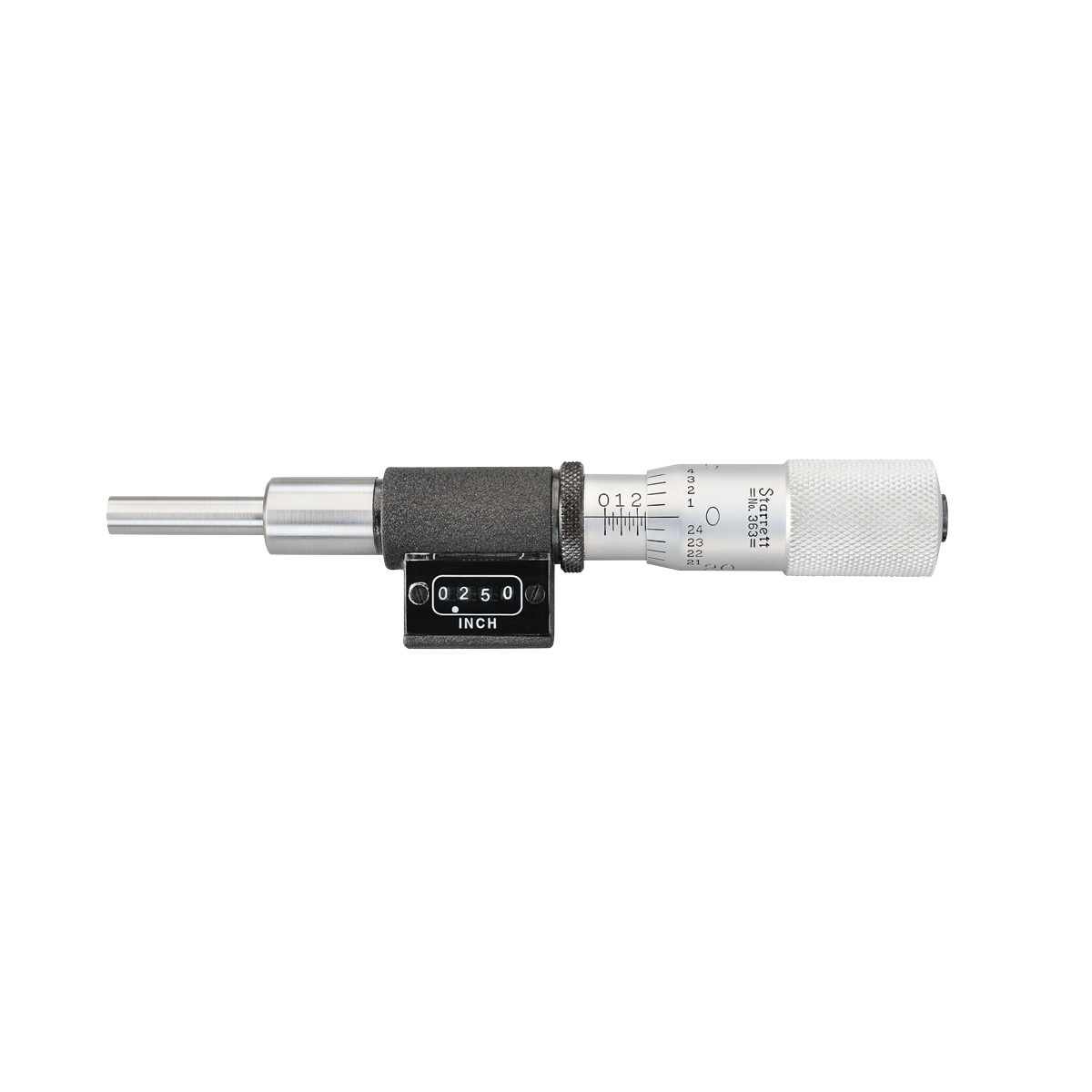

The Starrett 363 Digital Micrometer Head features a friction thimble and lock nut. 0-1” Range, .001” Grad, Lock Nut.

Features
Specifications
Parts
Downloads
Open Starrett-3D Parts Catalog



Contact Starrett

Features

  • Starrett satin chrome finish – no glare – resists rust on all reading surfaces
  • Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
  • Quick-reading figures
  • Extremely hard and stable one-piece spindle (the heart of our accuracy and long life)
  • Micro-lapped measuring face for flatness and squareness
  • Quick and easy adjustment

Specifications

  • Micrometer Type: Mechanical Micrometer Head
  • Range (in): 0-1"
  • Graduations (in): .001"
  • Spindle Material: Steel
  • Lock Nut Type: Ring Type Knurled
  • Spindle Type: Flat
  • Thimble Type: Plain
  • Accuracy (in): +/-.0001"

Parts

    Member of Kit

    Item #DescriptionPart No.QtyInformation
    1SHELL, ADJUSTING23474-01
    2SPINDLE, 1" #36319562-01
    3GEAR, DRIVE DIG. MICPT197631
    4DRIVE GEAR SCREWPT197661
    5NUT, .375-52PT164141
    6RING, BINDER19141-01
    7COUNTER ASSEM-ENG.PT19116A1
    8SHELL, DIG. MIC HEAD19564-01
    9SCREW, .157-40 SLOT X .377
    LONG
    PT051361
    10SCREWPT192902
    11WINDOW, ENGLISH #216PT191071
    12SCREW, .052-80 SLOT X .111
    LONG
    PT191422
    13LOCK NUT PIN19762-01
    14STEM, DIGITAL LOCKNUT-ENGLISH19764-01
    15SPRING, .089X.107X.062X.009X213207-01
    16COUNTER HOUSING05317-01
    17SPRING, BARREL10058-01
    18WRENCH #216PT188951
