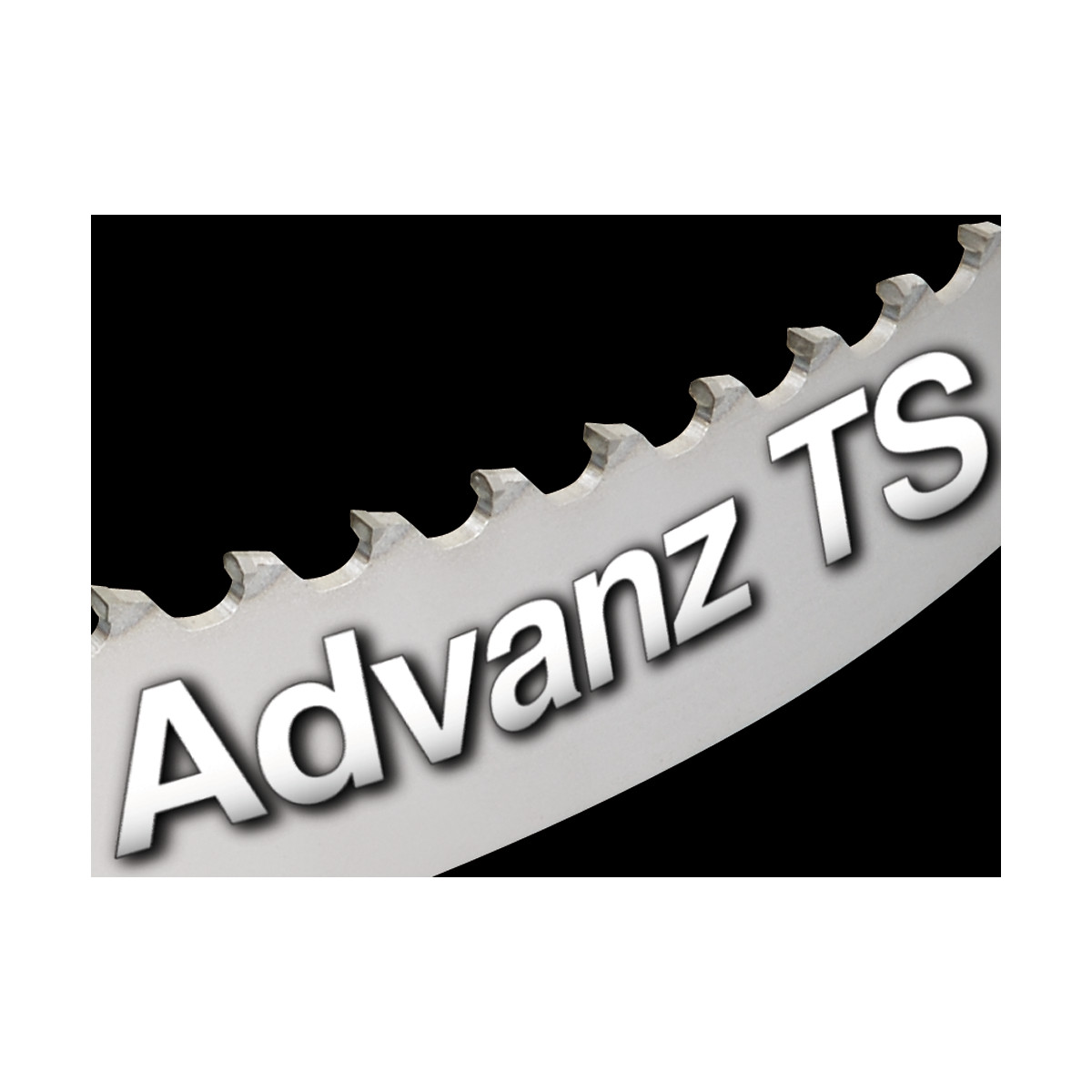

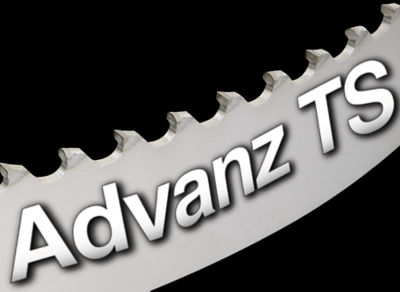

Advanz TS Band Saw Blades

Advanz TS is a Type III carbide tipped blade with teeth ground from high quality micro-grained carbide cylinders welded to a tough, ductile backing material. They have triple chip tooth geometry and improved carbide to back bonding. They resistance fatigue, shock and wear, faster and provide a smooth finish. They are ideal for sawing high-alloy metals, titanium, inconel and difficult-to-machine and stainless steels.

Products
Videos
Features
Downloads



Contact Starrett

Products

    Blade Width x Thickness

    Blade Pitch with Material Numbers

    Inch

    mm

    .9-1.1/P

    1/P

    1.3/P

    1.4-2/P

    2-3/P

    3/P

    3-4/P

    3/4" x .035"

    19 x 0.90mm

    92500

    92503

    1" x .035"

    25 x 0.90mm

    92504

    92509

    1-1/4" x .042"

    32 x 1.10mm

    92515

    92517

    1-1/4" x .050"

    32 x 1.30mm

    92522

    92512

    1-1/2" x .050"

    54 x 1.30mm

    92519

    92521

    92516

    2" x .063"

    50 x 1.60mm

    92558

    92559

    92528

    2-5/8" x .063"

    54 x 1.30mm

    92560

    92561

    92530

    3-1/8" x .063"

    79 x 1.60mm

    92562

    92531

    92563

Videos

Features

  • Teeth ground from high quality micro-grained carbide cylinders welded to a tough, ductile backing material.
  • Improved carbide to back bonding.
  • Triple chip tooth geometry.
  • Extreme resistance to heat and wear.
  • Smooth surface finish.
  • Improved strip resistance.
  • Superior durability.
  • Exceptional resistance to fatigue, shock and wear.
  • Ideal for sawing tough materials that bi-metal blades cannot cut such as difficult to machine steels, high-alloy metals, titanium, stainless steel and inconel.

Downloads

  • Advanz TS 236.49 kb
