Duratec FB

Duratec FB Band Saw Blades

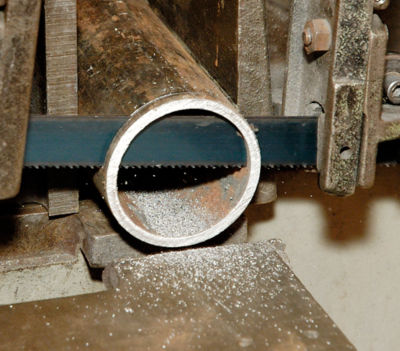

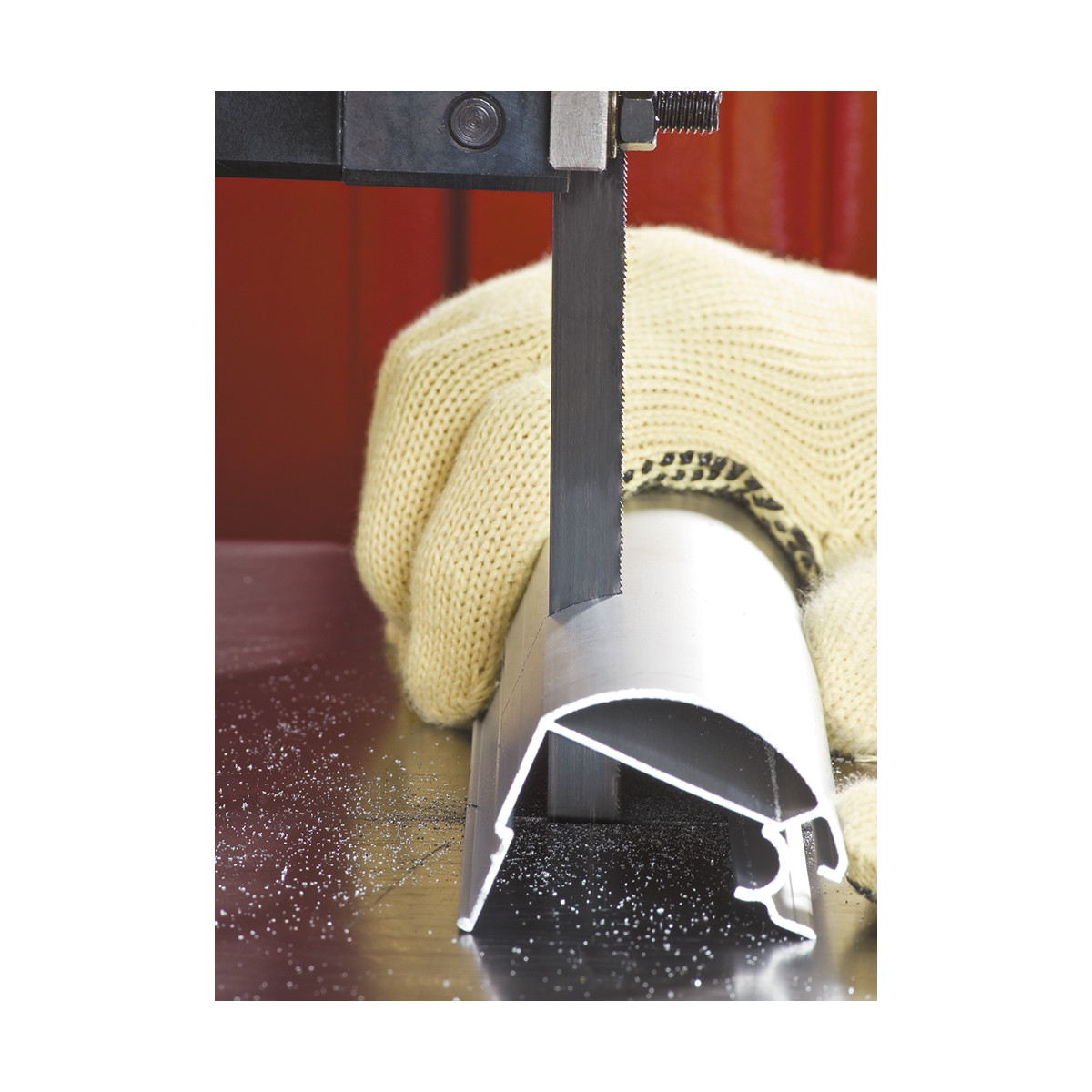

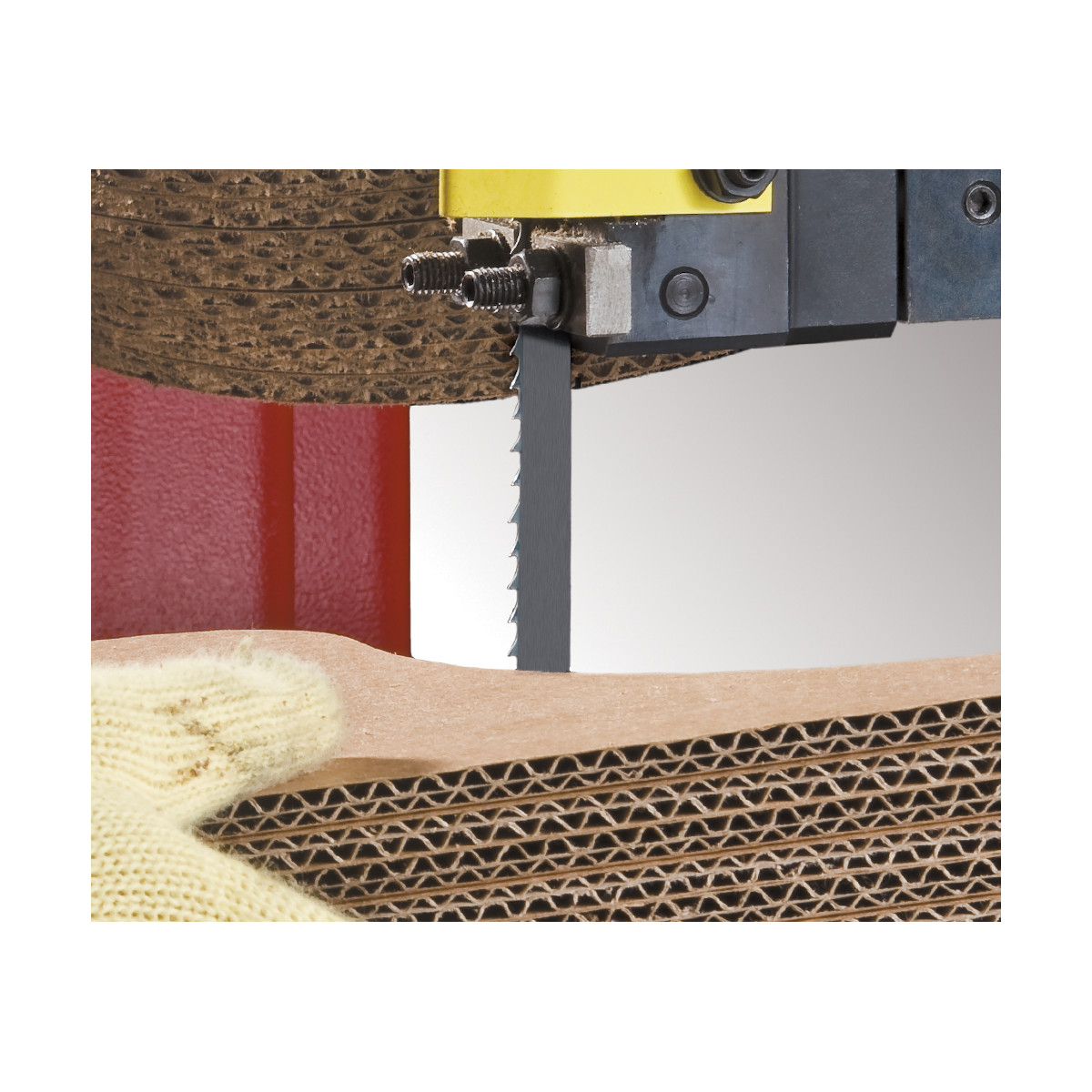

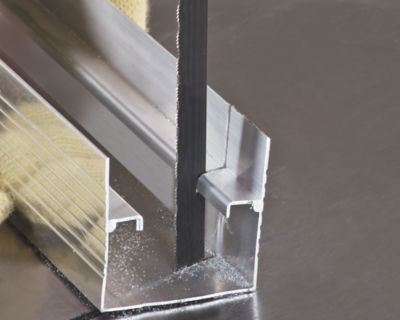

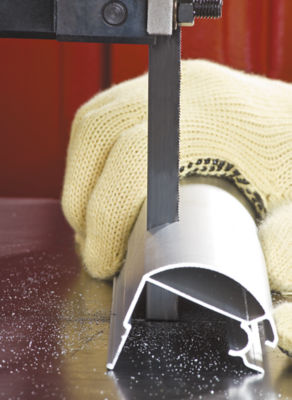

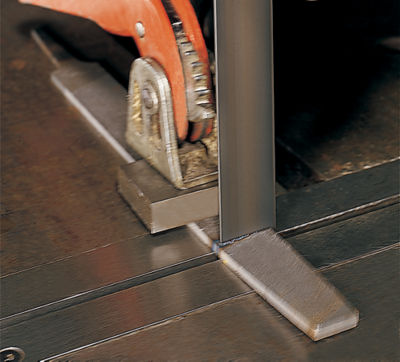

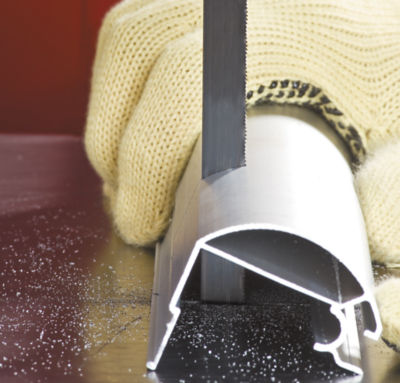

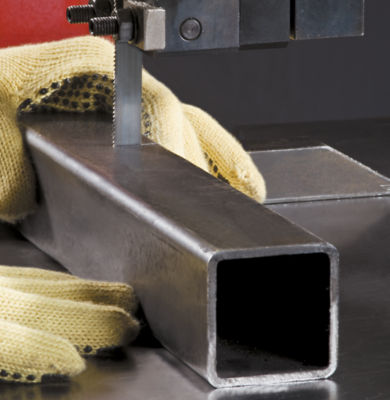

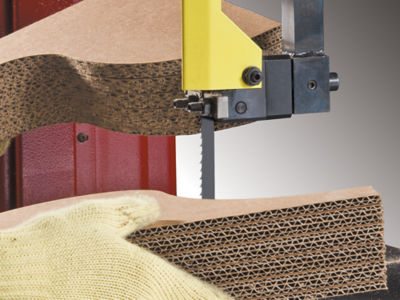

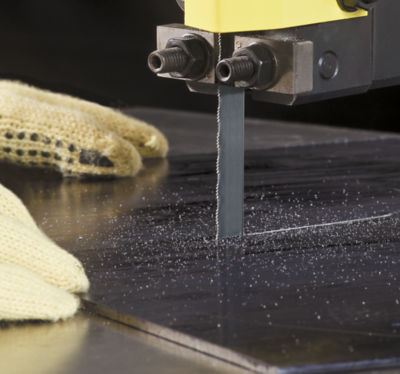

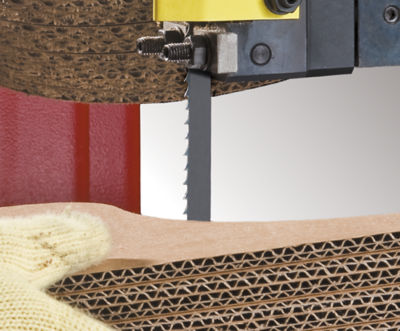

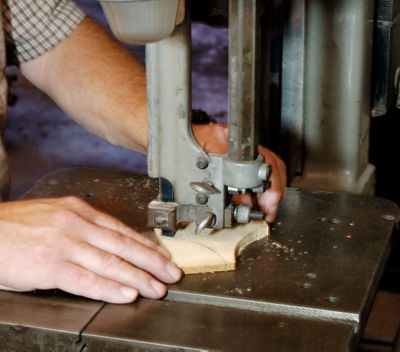

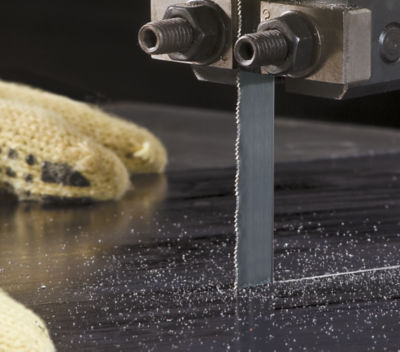

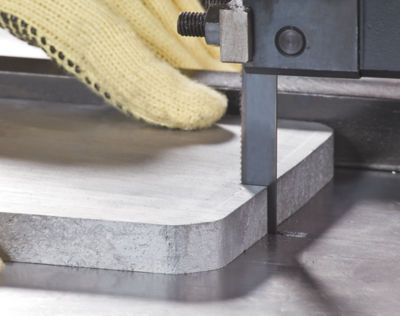

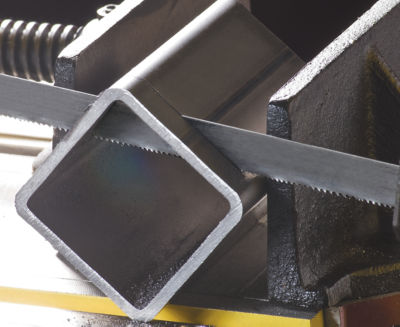

Made from carbon steel with a flexible back, Duratec FB is ideal for economical cutting on easy-to-machine ferrous or nonferrous metal and wood. It is available in a wide range of widths, thickness, pitches and welded-to-length sizes for general purpose contour and straight cutting on a variety of machines.

Features

Products

Blade Width x Thickness		Blade Pitch, Rake & Tooth Shape with Material Numbers
1/8" available in 100' (30m) coils only. 3/16" to 3/8" sizes available in 100' (30m) & 250' (76m) coils. 3/8" and larger sizes available in 100' (30m), 250' (76m) & 500' (152m) coils. P: Positive Rake. S: Straight (Zero) Rake. W: Wavy Set, Zero Rake. LP: Low Profile. HP: High Profile. K: Skip. WP: Woodpecker.
Inch	mm	WP-1-1/4/P Bearcat	2/P-LP Hook	3/S-K Skip	WP-3/P-HP Hook	3/P-LP Hook	4/P-HP Hook	4/S-K Skip	WP-4/P-HP Hook	WP-4/S-K Skip	6/S Regular	6/S-K Skip	6/P-HP Hook	8/S Regular	10/S Regular	10/W Regular	14/S Regular	14/W Regular	18/S Regular	18/W Regular	24/W Regular	32/W Regular
1/8" x .025"	3 x 0.65mm																91050		91060
3/16" x .014"	4.8 x 0.35mm													91083			91098
3/16" x .025"	4.8 x 0.65mm							91080							91090		91100
1/4" x .014"	6.5 x 0.35mm											91135					91178
1/4" x .025"	6.5 x 0.65mm						91130	91120			91151	91140	91147		91161		91181			91190	91204	91210
1/4" x .032"	6.5 x 0.80mm								91920
3/8" x .014"	10 x 0.35mm											91254					91288
3/8" x .025"	10 x 0.65mm					91230	91250	91240			91261		91264	91271	91281		91291			91300	91307
3/8" x .032"	10 x 0.80mm				91930				91940
1/2" x .020"	13 x 0.50mm														91375		91396			91415	91423
1/2" x .025"	13 x 0.65mm				91948	91330	91350	91340			91361		91373		91380	91390	91401	91411		91420	91430
1/2" x .032"	13 x 0.80mm				91950				91960	91965
5/8" x .032"	16 x 0.80mm														91450		91471
3/4" x .032"	19 x 0.80mm			91510		91515	91528				91531		91542	91550	91570	91590	91621
1" x .035"	25 x 0.90mm		91670	91680		91689					91701			91720	91730		91761
1-1/4" x .042"	32 x 1.10mm	91990
