Bi-Metal HSS

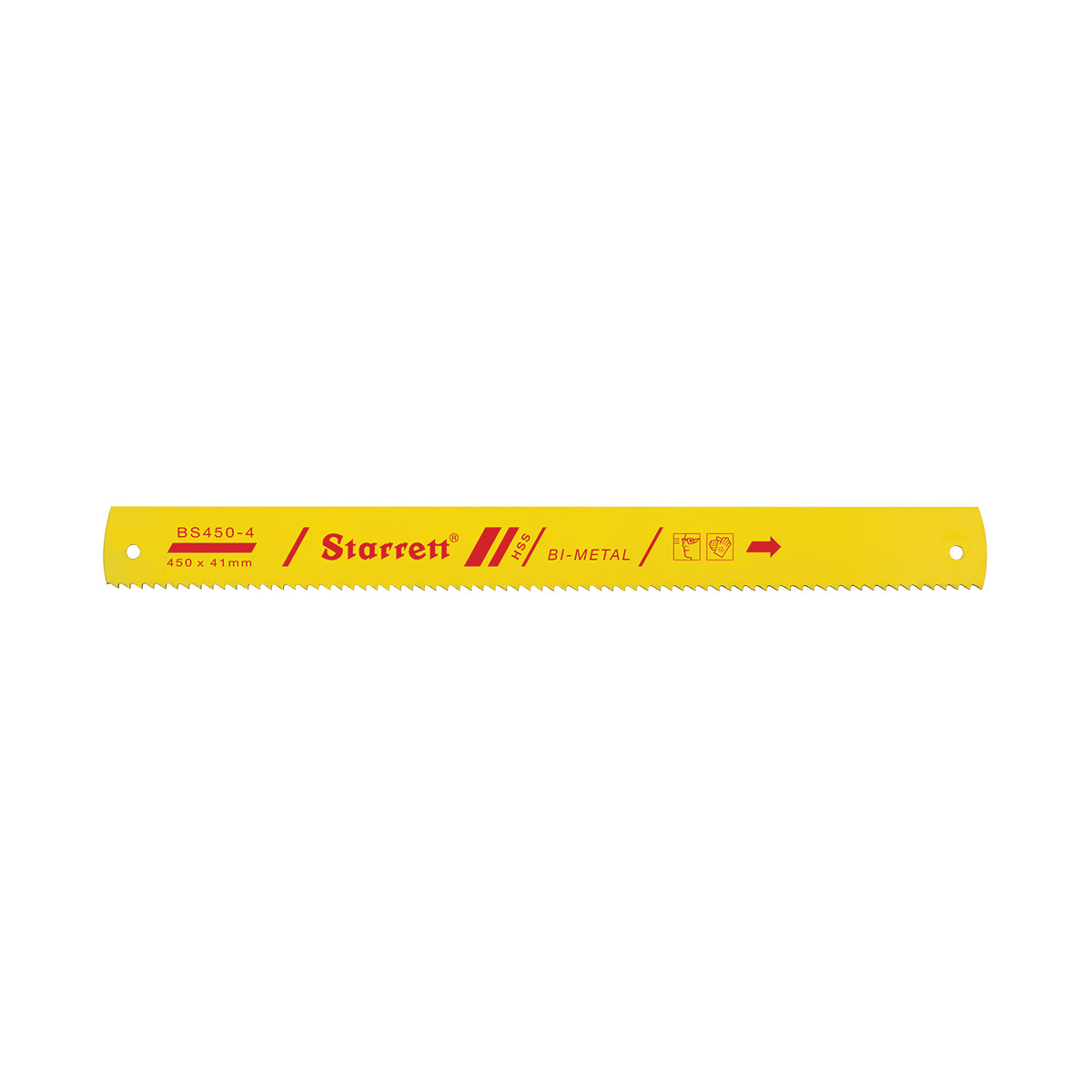

Bi-Metal High Speed Steel Power Hacksaw Blades

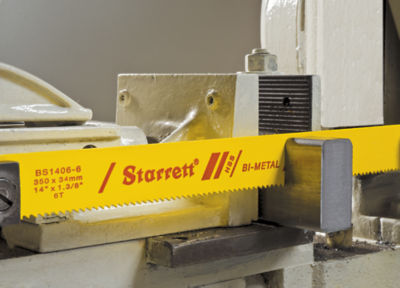

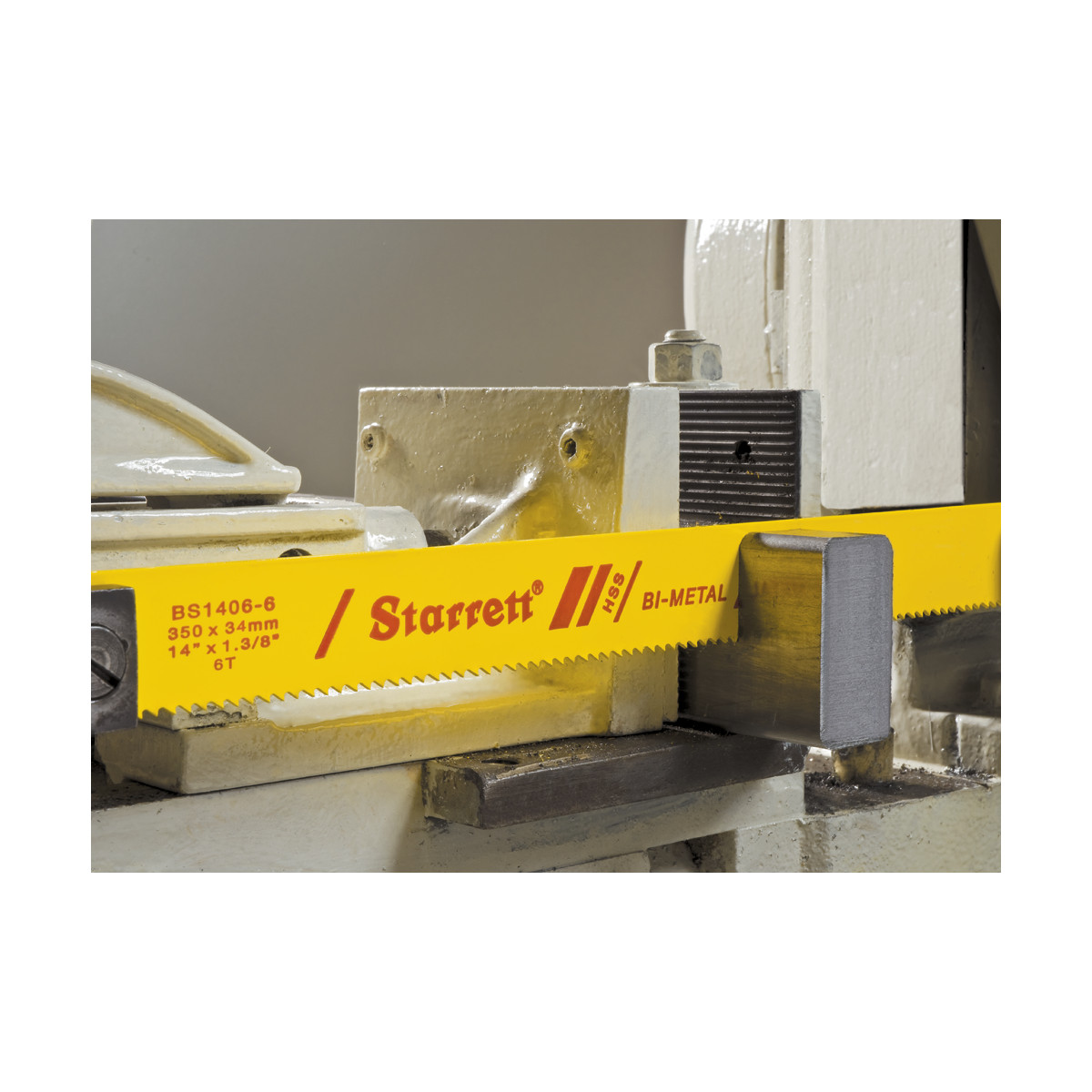

Bi-Metal HSS Power Hacksaw Blades work well in a wide variety of applications including difficult irregular shaped work pieces and interrupted cuts.

Products

Dimensions (Length x Width x Thickness)	Pinhole Diameter	TPI (TP/25mm)	Cat. No.	EDP
12" x 1-1/8" x .050" 300mm x 28.6mm x 1.25mm	8.5mm	10	BS1210-5	40097
12" x 1-1/8" x .050" 300mm x 28.6mm x 1.25mm		14	BS1214-5	40098
14" x 1-1/8" x .050" 350mm x 28.6mm x 1.25mm		10	BS1410-5	40099
14" x 1-1/8" x .050" 350mm x 28.6mm x 1.25mm		14	BS1414-5	40100
14" x 1-3/8" x .062" 350mm x 35mm x 1.6mm		6	BS1406-6	40101
14" x 1-3/8" x .062" 350mm x 35mm x 1.6mm		10	BS1410-6	40102
14" x 1-5/8" x .075" 350mm x 41mm x 2mm	10.5mm	6	BS1406-7	40105
17" x 1-3/8" x .062" 425mm x 35mm x 1.6mm	8.5mm	6	BS1706-6	40113
17" x 1-3/8" x .062" 425mm x 35mm x 1.6mm	8.5mm	10	BS1710-6	40114
18" x 1-3/8" x .062" 450mm x 35mm x 1.6mm	10.5mm	6	BS1806-6	40115
18" x 1-3/8" x .062" 450mm x 35mm x 1.6mm		10	BS1810-6	40116
18" x 1-5/8" x .075" 450mm x 41mm x 2mm		4	BS1804-7	40118
18" x 1-5/8" x .075" 450mm x 41mm x 2mm		6	BS1806-7	40119
18" x 1-7/8" x .088" 450mm x 48mm x 2.25mm		4	BS1804-8	40121
18" x 1-7/8" x .088" 450mm x 48mm x 2.25mm		6	BS1806-8	40122
21" x 1-7/8" x .088" 525mm x 48mm x 2.25mm		4	BS2104-8	40126
21" x 1-7/8" x .088" 525mm x 48mm x 2.25mm		6	BS2106-8	40127
24" x 2-1/8" x .100" 600mm x 54mm x 2.5mm		3	BS2403-0	40131
24" x 2-1/8" x .100" 600mm x 54mm x 2.5mm		4	BS2404-0	40132
