Redstripe Solid HSS

Redstripe Solid High Speed Steel Power Hacksaw Blades

Redstripe Solid HSS Power Hacksaw Blades are made from a solid, fully hardened molybdenum high speed steel composition for extended life, efficient cutting action with heavy feed pressures to effectively cut tough alloys such as stainless steels.

Products

Dimensions (Length x Width x Thickness)	Pinhole Diameter	Teeth per 25mm (Inch)	Catalog Number	EDP	Fits Kasto Machine Model No.
300mm x 32mm x 2mm 12" x 1-1/4" x .075"	8.5mm (.335")	6	RS300-6	16168	WBS 150-170
300mm x 32mm x 2mm 12" x 1-1/4" x .075"		10	RS300-10	16169	WBS 150-170
350mm x 32mm x 2mm 14" x 1-1/4" x .075"		6	RS350-6	40177	UBS 200
350mm x 32mm x 2mm 14" x 1-1/4" x .075"		10	RS350-10	40178	UBS 200
400mm x 32mm x 2mm 16" x 1-1/4" x .075"		4	RS400-4	40179	VBS242
		6	RS400-6	40180	VBS242
		10	RS400-10	40181	VBS242

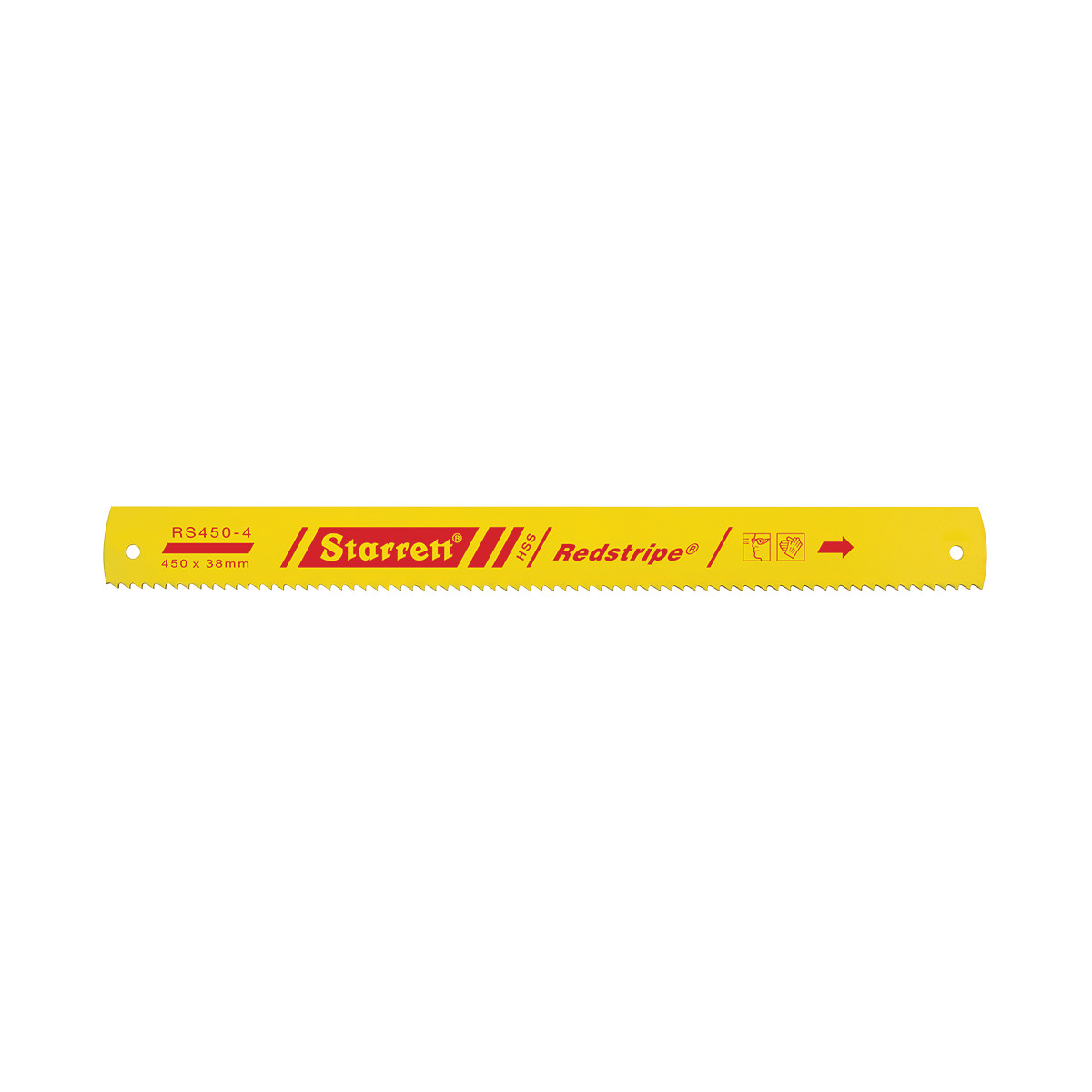

450mm x 38mm x 2mm 18" x 1-1/2" x .075"		4	RS450-4	40182	UBS 280
		6	RS450-6	40183	UBS 280
		10	RS450-10	40184	UBS 280
500mm x 45mm x 2mm 20" x 1-3/4" x .075"	10.5mm (.413")	4	RS500-4	16170	BSM 323
		6	RS500-6	16171	BSM 323
		10	RS500-10	16172	BSM 323
550mm x 45mm x 2mm 22" x 1-3/4" x .075"		4	RS550-4	40173	UBS 320
		6	RS550-6	40174	UBS 320
		10	RS550-10	40185	UBS 320
575mm x 50mm x 2.5mm 23" x 2" x .100"		4	RS575-4	40175	EBS 320
575mm x 50mm x 2.5mm 23" x 2" x .100"		6	RS575-6	40176	EBS 320
600mm x 50mm x 2.5mm 24" x 2" x .100"		4	RS600-4	16173	EBS 320AU
600mm x 50mm x 2.5mm 24" x 2" x .100"		6	RS600-6	16174	EBS 320AU
650mm x 55mm x 2.5mm 26" x 2-3/16" x .100"		4	RS650-4	40186	EBS 400
650mm x 55mm x 2.5mm 26" x 2-3/16" x .100"		6	RS650-6	40187	EBS 400
700mm x 55mm x 2.5mm 28" x 2-3/16" x .100"		4	RS700-4	40188	EBS 450
700mm x 55mm x 2.5mm 28" x 2-3/16" x .100"		6	RS700-6	40189	EBS 450
850mm x 60mm x 3mm 34" x 2-3/8" x .118"	12.5mm (.492")	4	RS850-4	16175	EBS 550
850mm x 60mm x 3mm 34" x 2-3/8" x .118"		6	RS850-6	16176	EBS 550
900mm x 114mm x 3.5mm 36" x 4-1/2" x .138"		2-1/2 TPI	RS900-2-1/2	68716	Marvel #24 (Replacement for Marvel Cat. 3625-E)
1000mm x 126mm x 3.5mm 40" x 5" x .138"		2-1/2 TPI	RS1000-2-1/2	16177	PBS 630
