Hole Saw Arbors

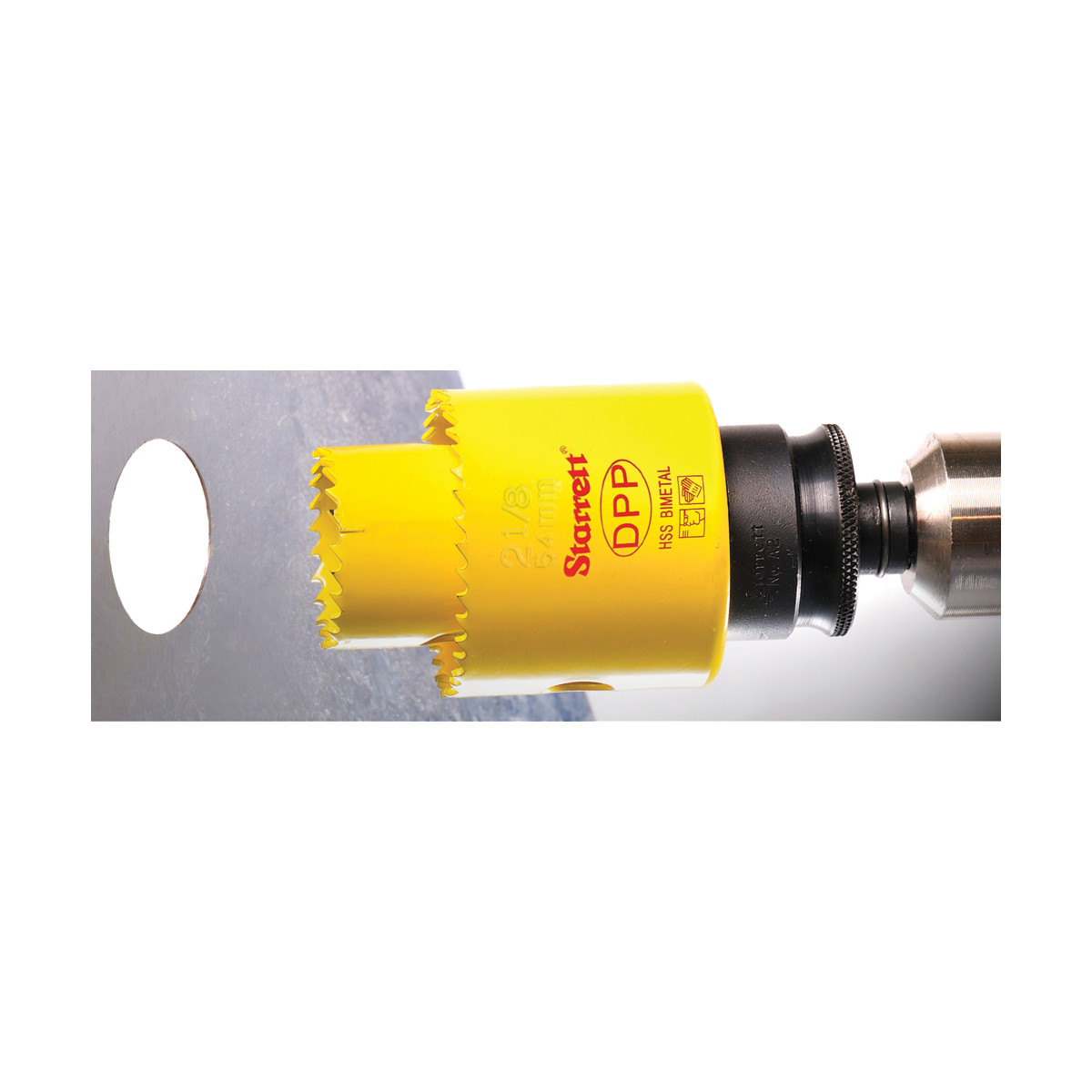

Standard arbors are available for use with 1/4” and 3/8” chucks. Quick-Hitch arbors, available for ½” and 3/8” chucks, allow tool free hole saw changes. Heavy Duty locking arbors for ½” and 3/8” chucks are made for cutting larger sizes and/or difficult materials. Extended length arbors are also available. All are available with either HSS or carbide ¼” pilot drills. The Oops arbor allows a hole cut with hole saw to be enlarged by attaching the original and larger hole saws to the special arbor. The smaller saw then is the pilot for the larger hole saw.

Products
Downloads



Contact Starrett

Products

    Hole Saw Arbor with High Speed Steel/Carbide Drill for All-Purpose and Sheet Metal Hole Saws

    Fits Hole Saw Diameter Inch/mm

    Catalog No.

    EDP

    Shank Size (Inch/mm)

    Screw Thread

    Fits Morse Taper Adaptor

    9/16" – 1-3/16"
    (14-30 mm)

    A1 (3/8" Chuck)

    55141

    11/32" (8.75mm) Hex

    1/2-20

    MA05,
    MA06

    KA1-N (3/8" Chuck) 11553

    A4 (1/4" Chuck)

    55144

    1/4" (6.5mm) Hex

    KA4-N (1/4" Chuck)

    11555

    1-1/4" – 8-9/32"
    (32 - 210 mm)

    A2 Quick-Hitch (1/2" Chuck)

    55142

    7/16" (11mm) Hex

    5/8-18

    MA02,
    MA03

    KA2-N Quick-Hitch (1/2" Chuck) 11552

    A10 Quick-Hitch (3/8" Chuck)

    56615

    11/32" (8.75mm) Hex

    MA05,
    MA06

    KA10-N Quick-Hitch (3/8" Chuck)

    11554

    Hole Saw Arbor with High Speed Steel/Carbide Drill for CT, XO & DO Special Purpose Hole Saws

    Fits Hole Saw Diameter Inch/mm

    Catalog No.

    EDP

    Shank Size (Inch/mm)

    Screw Thread

    Fits Morse Taper Adaptor

    9/16" – 1-3/16"
    (14-30 mm)

    XA1 (3/8" Chuck)

    56758

    11/32" (8.75mm) Hex

    1/2-20

    MA05,
    MA06

    1-1/4" – 8-9/32"
    (32 - 210 mm)

    XA2 Quick-Hitch (1/2" Chuck)

    56759

    7/16" (11mm) Hex

    5/8-18

    MA02,
    MA03

    XA10 Quick-Hitch (3/8" Chuck)

    56763

    11/32" (8.75mm) Hex

    MA05,
    MA06

    Hole Saw Arbor With Extended Length HSS Pilot Drill

    Fits Hole Saw Diameter Inch/mm

    Catalog No.

    EDP

    Shank Size (Inch/mm)

    Screw Thread

    9/16" – 1-3/16"
    (14mm – 30mm)

    A1-E (3/8" Chuck)

    11925

    11/32" (8.75mm) Hex

    1/2"-20

    KA1-E-N (3/8" Chuck) 11567

    9/16" – 1-3/16
    (14mm – 30mm)

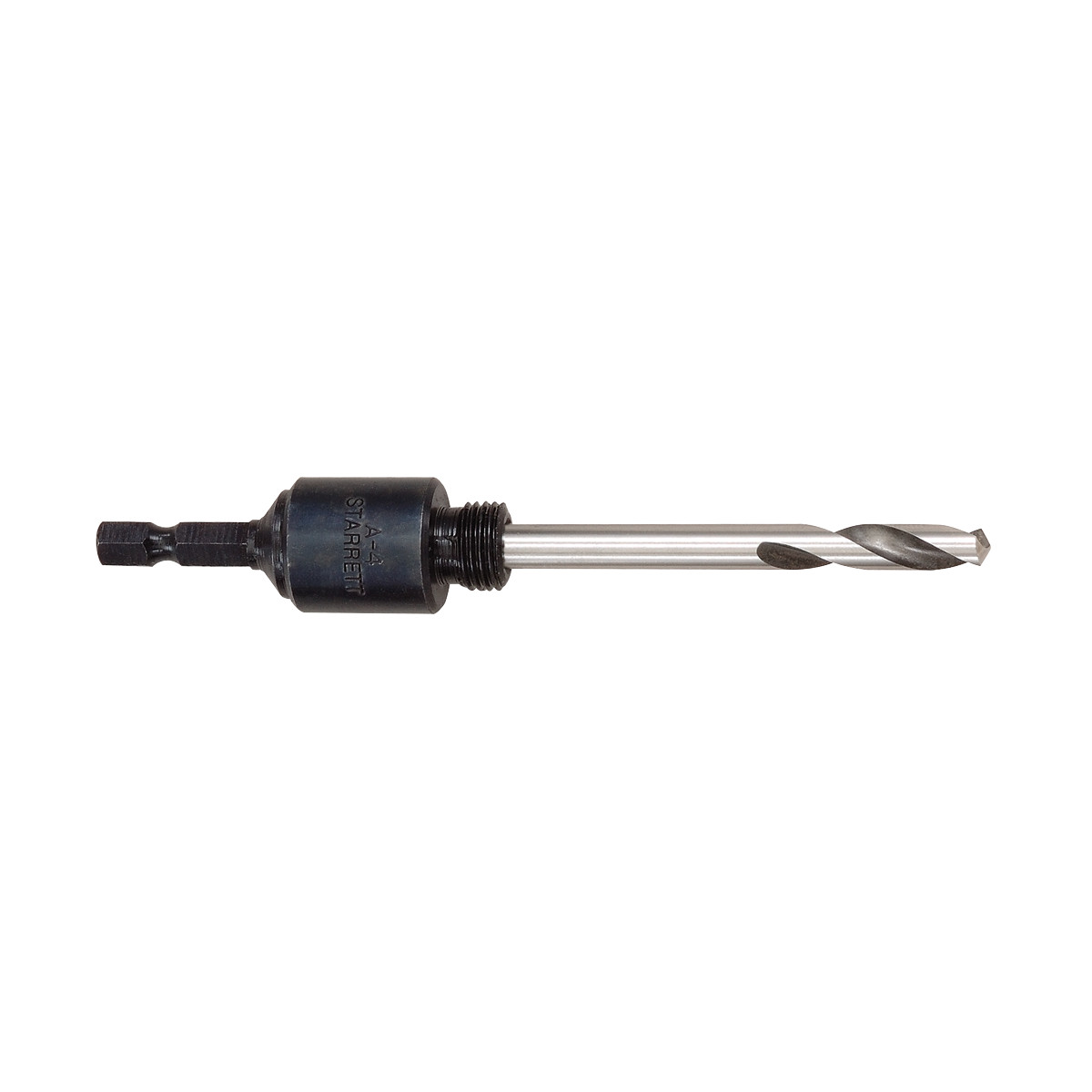

    A4-E (1/4" Chuck)

    11931

    1/4"-20 (6.5mm) Round

    1-1/4" – 8-9/32"
    (32mm – 210mm)

    A2-E (1/2" Chuck)
    Quick-Hitch

    11928

    7/16" (11mm) Hex

    5/8"-18

    KA2-E-N (1/2" Chuck)
    Quick-Hitch
    11565

    1-1/4" – 8-9/32"
    932mm – 210mm)

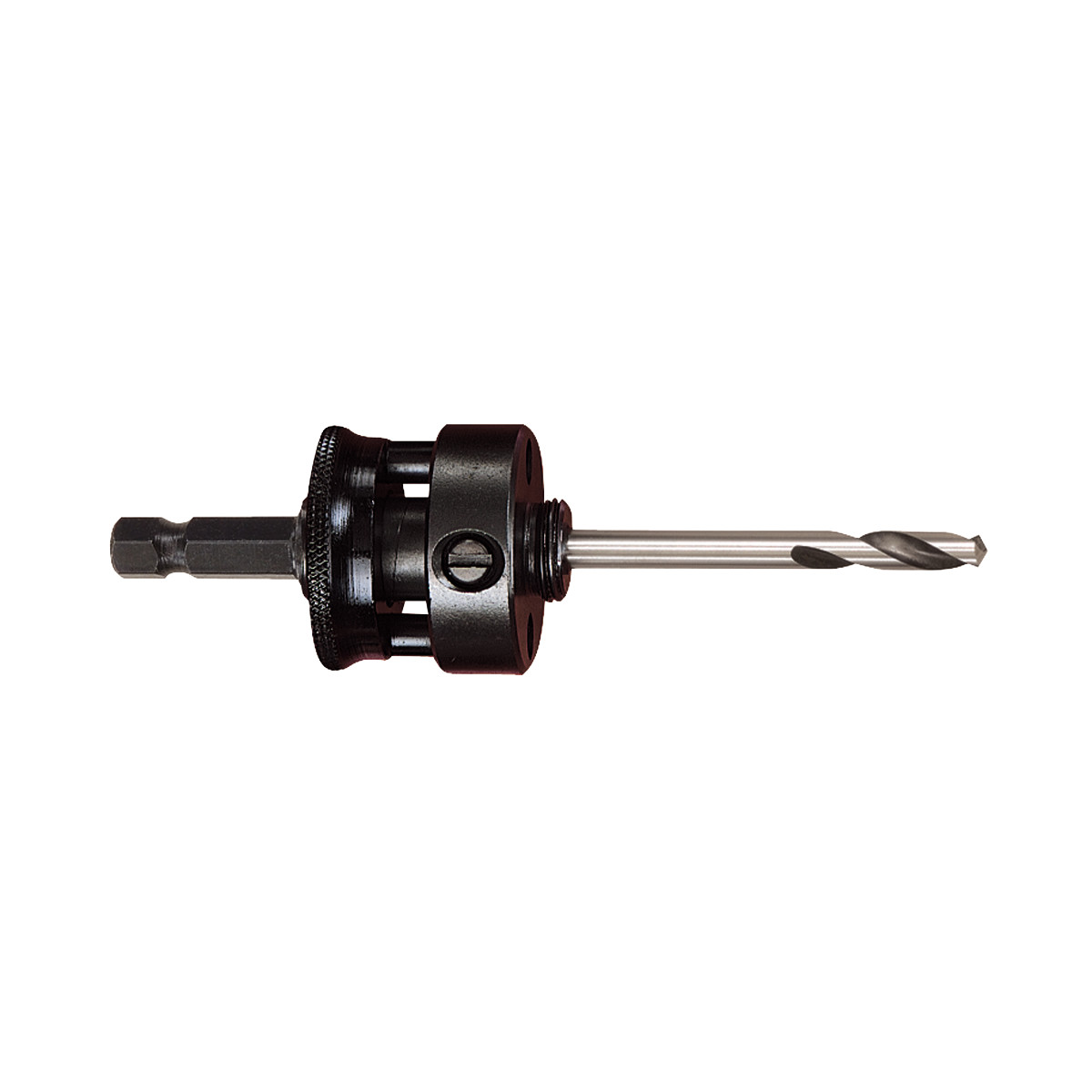

    A10-E (3/8" Chuck)
    Quick-Hitch

    11934

    11/32" (8.75mm) Hex

    KA10-E-N (3/8" Chuck)
    Quick-Hitch
    11566

    Locking Arbor With Extended Length HSS Pilot Drill

    Fits Hole Saw Diameter Inch/mm

    Catalog No.

    EDP

    Shank Size (Inch/mm)

    Screw Thread

    1-1/4" – 6-1/4"
    (32mm – 159mm)

    A17-38E (3/8" Chuck)

    11937

    11/32" (8.75mm) Hex

    5/8"-18

    KA17-38E-N (3/8" Chuck)

    11568

    1-1/2" – 8-9/32"
    (38mm – 210mm)
    XA17-38 Carbide Tipped (3/8" Chuck) 64199
