Straight 6-Pitch Bi-Metal

Straight 6-Pitch Hole Saws

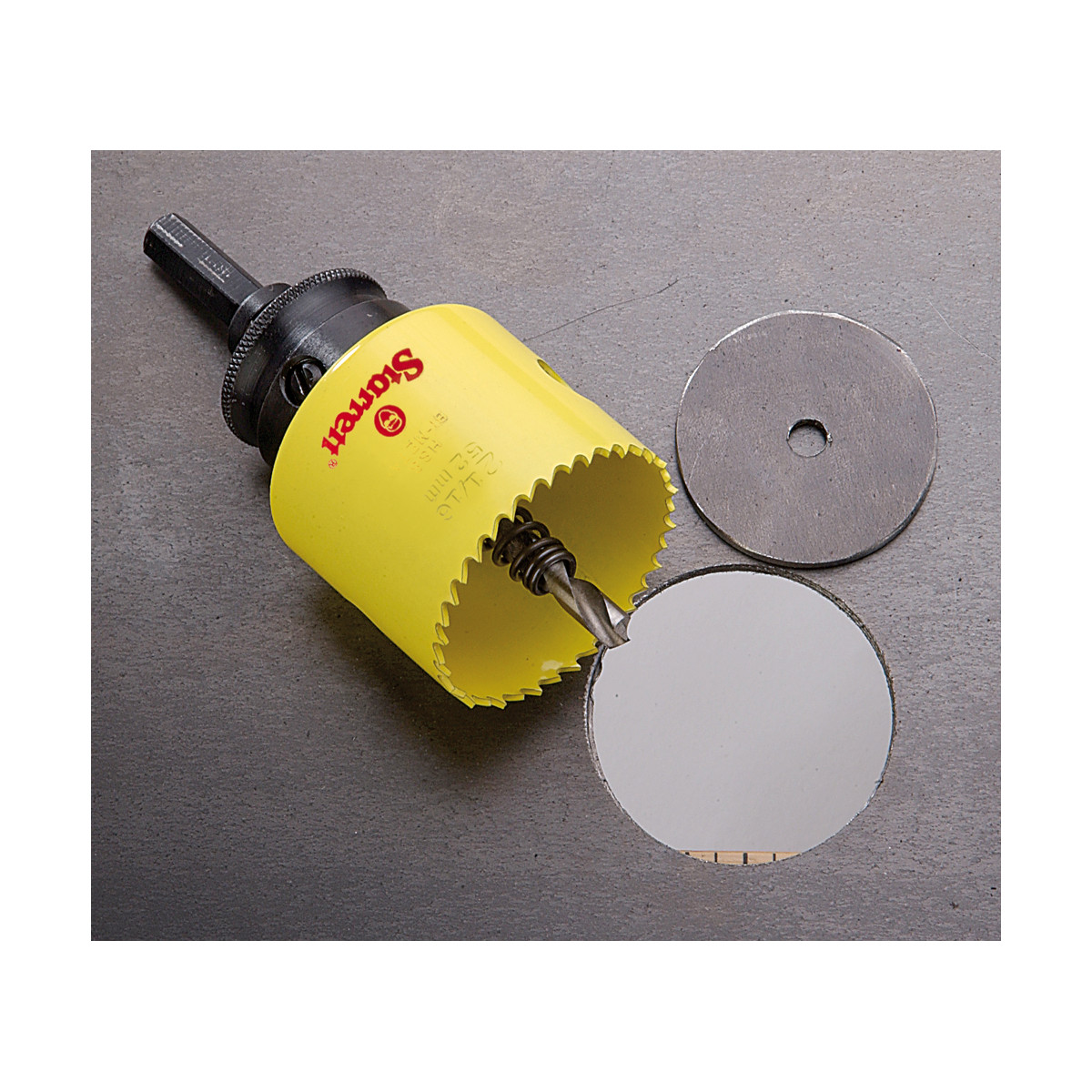

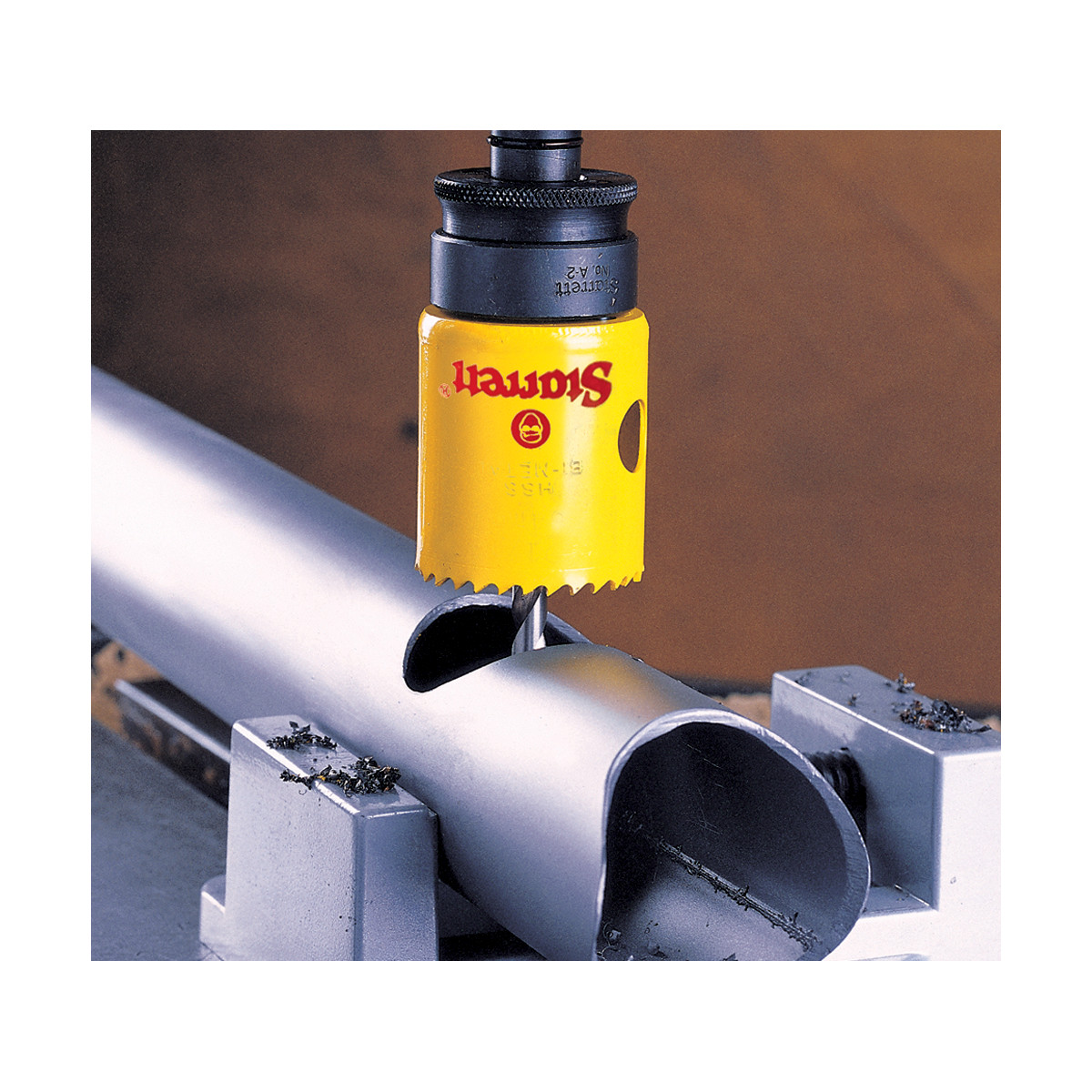

Hardened, heat resistant HSS, with alloy backing and a straight 6-pitch smoothly cuts thin cross sections of sheet metal, corrugated or perforated steel, and applications with interrupted cuts. 1-5/8" cutting depth.

Products

Inch	mm	Cat. No.	EDP
9/16"	14mm	SH0096	61000
5/8"	16mm	SH0058	61001
11/16"	17mm	SH1016	61002
3/4"	19mm	SH0034	61003
13/16"	21mm	SH1036	61005
7/8"	22mm	SH0078	61006
15/16"	24mm	SH1056	61007
1"	25mm	SH0100	61008
1-1/16"	27mm	SH0116	61009
1-1/8"	29mm	SH0118	61010
1-3/16"	30mm	SH0136	61011
1-1/4"	32mm	SH0114	61012
1-5/16"	33mm	SH0156	61013
1-3/8"	35mm	SH0138	61014
1-7/16"	37mm	SH0176	61015
1-1/2"	38mm	SH0112	61016
1-9/16"	40mm	SH0196	61017
1-5/8"	41mm	SH0158	61018
1-11/16"	43mm	SH1116	61019
1-3/4"	44mm	SH0134	61020
1-13/16"	46mm	SH1136	61021
1-7/8"	48mm	SH0178	61022
2"	51mm	SH0200	61023
2-1/16"	52mm	SH0216	61024
2-1/8"	54mm	SH0218	61025
2-1/4"	57mm	SH0214	61027
2-5/16"	59mm	SH0256	61028
2-3/8"	60mm	SH0238	61029
2-1/2"	64mm	SH0212	61030
2-9/16"	65mm	SH0296	61031
2-5/8"	67mm	SH0258	61032
2-3/4"	70mm	SH0234	61034
2-7/8"	73mm	SH0278	61035
3"	76mm	SH0300	61036
3-1/8"	79mm	SH0318	61037
3-1/4"	83mm	SH0314	61038
3-3/8"	86mm	SH0338	61039
3-1/2"	89mm	SH0312	61040
3-5/8"	92mm	SH0358	61041
3-3/4"	95mm	SH0334	61042
3-7/8"	98mm	SH0378	61043
4"	102mm	SH0400	61044
4-1/8"	105mm	SH0418	61045
4-1/4"	108mm	SH0414	61046
4-3/8"	111mm	SH0438	61047
4-1/2"	114mm	SH0412	61048
4-3/4"	121mm	SH0434	61049
5"	127mm	SH0500	61050
5-1/2"	140mm	SH0512	61051
6"	152mm	SH0600	61052
6-5/16"	160mm	SH160MM	61053 '> 61053 61053 '>
6-5/8"	168mm	SH168MM	61054 '> 61054 61054 '>
6-31/32"	177mm	SH177MM	61055 '> 61055 61055 '>
8-9/32"	210mm	SH210MM	61056
