Edge & Center Finders

Locate work surfaces easily, quickly and accurately.


Edge & Center Finders are used in traditional methods for setting spindle location. Once the edges of a part are established in the spindle, the relative location of the spindle can then be utilized. These tools validate when a spindle is precisely over the edge of a part.

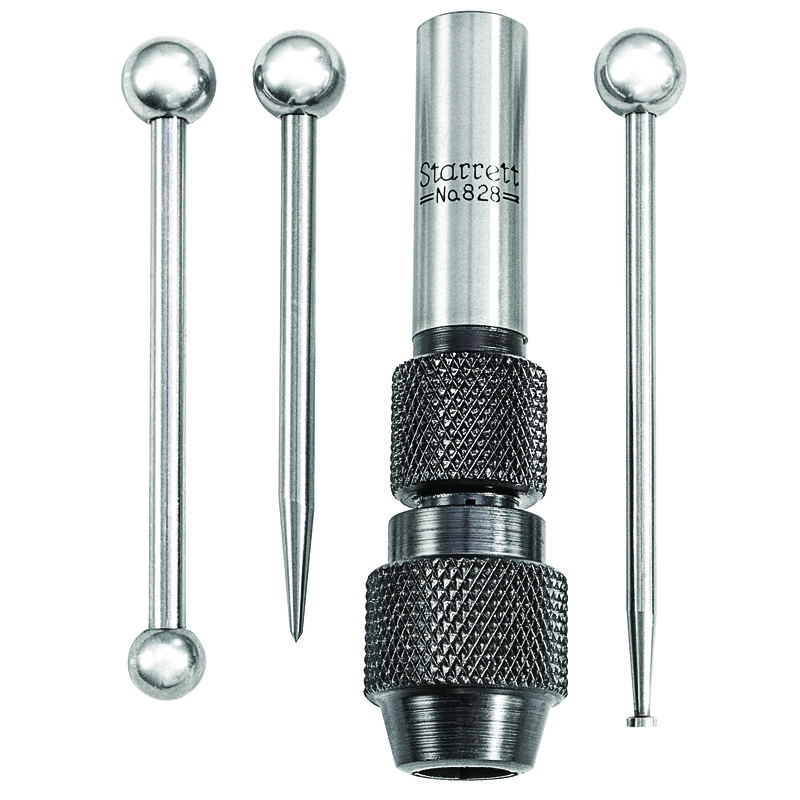

Wigglers or Center Finders (828)

Wiggler/Center Finder S828 and four different attachments adapt to countless applications and are readily interchangeable. The attachments are snapped in the chuck without removing the collet nut and are clamped by a ball swivel-joint that permits adjustment to an angular position or true concentricity.

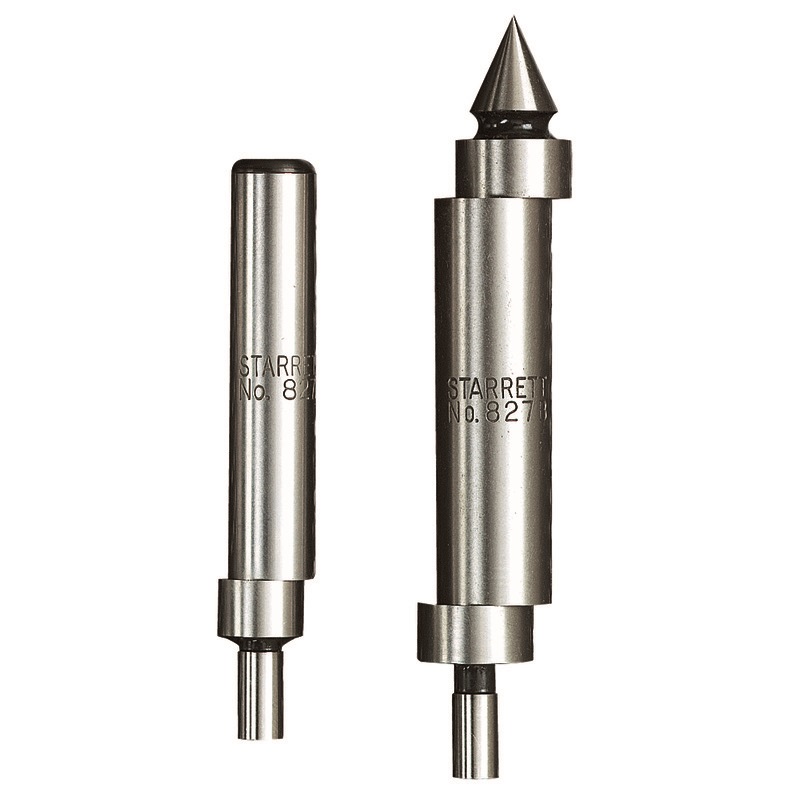

Edge Finders (827)

Work surfaces may be located easily, quickly and accurately with these edge finders. Work with flat, straight edges, shoulders, grooves, round work, studs, dowels or center points and scribed lines – all can be accurately located with this handy tool. Body and contacts are made of tool steel, hardened, ground and lapped to close tolerances for diameter and concentricity.
