PIN VISES & SETS

For securely holding small stock, taps, drills, reamers, scribers, wire, small files, and other tools.

SHOP PIN VISES AND SETS

Starrett pin vises are useful for securely holding small stock, taps, drills, reamers, scribers, wire, small files, and other tools. The jaws on all are hardened and with a few turns of the binding nut, a firm grip may be obtained. Handles and binding nuts are nickel-plated except for the 166 pin vise. A hole extends through the full length of the handles so that wires of any length and any diameter up to the full size of the tool can be held.

NOTE: These tools not recommended for powered use.

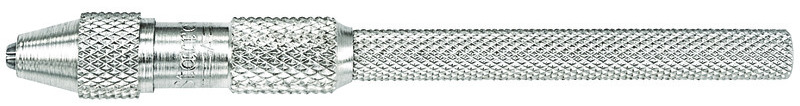

162 Pin Vises - 0-.187"/0-4.8MM
The handles of these pin vises are reduced in size so that they can be rapidly rotated between thumb and finger when filing small work.

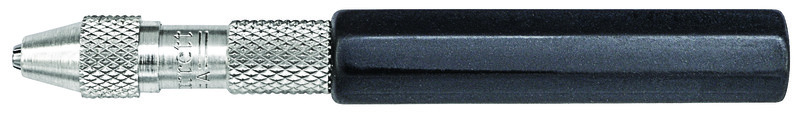

166 Pin Vises with Insulated, Octagonal Handles - 0-.187"/0-4.8MM
These pin vises are the same as our 162 except that they have an insulating PVC handle which is octagonally shaped, preventing them from rolling when laid down.

240 Pin Vises with Tapered Collets - .010-.200"/0.25-5.1MM
Special tapered collet, providing maximum clamping surface. Smaller body diameter than the chuck to allow fast opening and closing and rapid rotation when used on small work. Available individually or as a complete set in a convenient case.

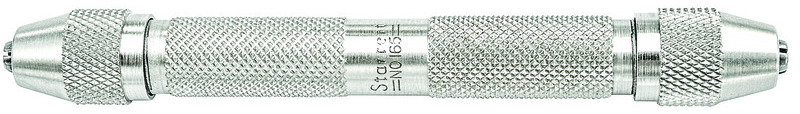

165 Double End Pin Vise - 0-.125"/0-3.2MM
Reversible collets with two size capacities at each end. One chuck holds work or tools 0-.031" and .093-.125" diameter (0-0.8mm and 2.5-3.2mm). The other chuck holds .031-.062" and .062-.093" diameter (0.8-1.6mm and 1.6-2.5mm).
"Back support" provided by beveled chuck ends.
